Geliss Pilot Batch Freeze Dryer | Silicone Oil Freeze Dryer for Pharma
ZLGJ-20FY
Product Details
Place Of Origin: China
Brand Name: Geliss
Certification: CE
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Available Upon Request
Packaging Details: Plywood Case
Delivery Time: 7-30 Working Days
Payment Terms: T/T
Supply Ability: 200 Units/Mont
Place Of Origin: China
Brand Name: Geliss
Certification: CE
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Available Upon Request
Packaging Details: Plywood Case
Delivery Time: 7-30 Working Days
Payment Terms: T/T
Supply Ability: 200 Units/Mont
Quantity:
Recommend Products
Geliss Pilot Scale Freeze Dryer with Electric Heating for drugProduct Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 200 Units/MonthZLGJ-10FD
Geliss Pilot Electric Heating Freeze Dryer for hashProduct Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 200 Units/MonthZLGJ-30FD
Geliss Pilot Scale Freeze Dryer with Electric Heating for hashProduct Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 200 Units/MonthZLGJ-50FD
Geliss Pilot-Scale Silicone Oil Heated Freeze Dryer for Biological SamplesDetalles del producto Lugar de origen: China Nombre de la marca: Geliss Certificación: CE Condiciones de pago y envío Cantidad mínima de pedido: 1 unidad Precio: Disponible bajo petición Detalles de empaquetado: Caja de madera contrachapada Tiempo de entrega: 7-30 días laborables Condiciones de pago: T/T Capacidad de suministro: 200 unidades/mesZLGJ-20F
Product Overview

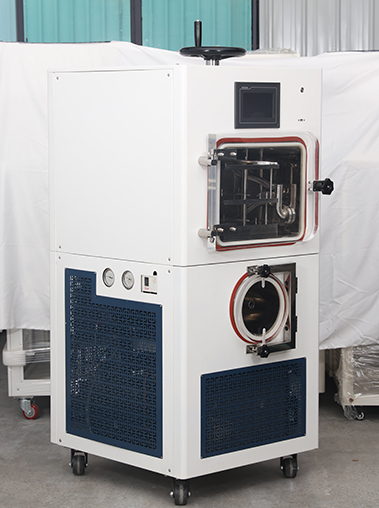

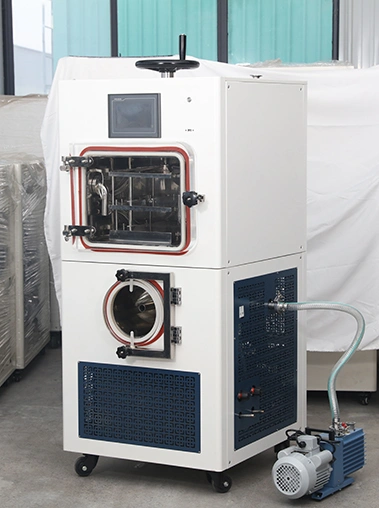

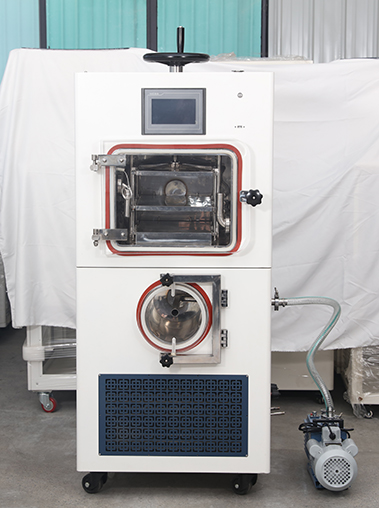

The ZLGJ-20FY silicone oil-heated vacuum freeze dryer with automatic stoppering is a high-performance pilot-scale unit designed for pilot-scale R&D, small-batch production, and high-precision sample processing. It integrates core technologies such as precise silicone oil temperature control and high-pressure, high-efficiency defrosting, and is equipped with genuine French Tecumseh hermetic compressors (dual-unit system), a Yonghao two-stage rotary vane pump, and a Ruibao high-precision vacuum gauge. Featuring a freeze-drying area of 0.2 m², it utilizes a patented"2+1"shelf configuration (employing internal welding technology); the cold trap achieves a minimum temperature of ≤-75°C and a water-trapping capacity exceeding 4 kg. Manufactured in strict accordance with GMP, FDA, and GB/T5226.1-1996 standards, the unit is easy to operate and transport, making it an ideal choice for pharmaceutical companies, research institutes, and testing organizations requiring pilot-scale freeze-drying and aseptic stoppering capabilities.
Key Features
The system utilizes advanced, precision silicone oil temperature control technology and is equipped with an original Grundfos canned motor pump for silicone oil circulation, ensuring uniform shelf temperature distribution with a deviation of ≤±1°C (under equilibrium conditions). Under no-load conditions, the shelves can transition from -40°C to +20°C and from +20°C to -40°C within 60 minutes, thereby better protecting heat-sensitive materials—such as proteins and peptides—and ensuring consistent product quality across batches.
Technical Specifications
| MODEL | ZLGJ-10FDY | ZLGJ-20FY | ZLGJ-30FY | ZLGJ-50FY | ZLGJ-100FY | ZLGJ-200FY |
| Freeze-dryingarea | 0.1㎡ | 0.2㎡ | 0.3㎡ | 0.5㎡ | 1㎡ | 2.1㎡ |
| Temperature scope of shelf | -50℃-+70℃(no-load) | -50℃-+70℃(no-load) | -50℃-+70℃(no-load) | -50℃-+70℃(no-load) | -50℃-+70℃(no-load) | -50℃-+70℃(no-load) |
| shelf temperatureerror | ±1℃(in balance) | ±1℃(in balance) | ±1℃(in balance) | ±1℃(in balance) | ±1℃(in balance) | ±1℃(in balance) |
| Min. Temperature of condenser | ≤-60℃(no-load) | ≤-75℃(no-load) | ≤-75℃(no-load) | ≤-75℃(no-load) | ≤-75℃(no-load) | ≤-75℃(no-load) |
| Water-capture capability | ＞2Kg | ＞4Kg | 5Kg | ＞8Kg | ＞20Kg | ＞30Kg |
| final Vacuum degree | ≤ 10Pa | ≤ 10Pa | ≤ 10Pa | ≤ 10Pa | ≤ 10Pa | ≤ 10Pa |
| Layers of shelf | 1（Shelf spacing）100 mm | 2（Shelf spacing）100 mm | 3（Shelf spacing）100 mm | 3（Shelf spacing）100 mm | 4（Shelf spacing）100 mm | 4（Shelf spacing）100 mm |
| Power | Single phase 220V | Single phase 220V or three-phase 380V | Single phase 220V or three-phase 380V | Single phase 220V or three-phase 380V | tSingle phase 220V or three-phase 380V | three-phase 380V |
| Installed power | 1.5KW (this is installed power, not running power) | 2.8 KW (this is installed power, not running power) | 3.5 KW (this is installed power, not running power) | 6.5 KW (this is installed power, not running power) | 7.5 KW (this is installed power, not running power) | 12.5 KW (this is installed power, not running power) |
| Whole machine size | About 780x650x1210mm | About 800x800x1650mm | About 950x1240x1450mm | About 980x1570x1970mm | About 1150x1580x1980mm | About 1150x1580x1980mm |
| Whole machine weight (kg) | About 220 | About 323 | About 320 | About 800 | About 1300 | About 1300 |
Application Fields
This equipment is frequently used by pharmaceutical companies for process validation and pilot-scale production of freeze-dried injectables and biological products; leveraging precise silicone oil temperature control technology and pilot-scale batch freeze-drying capabilities, it provides reliable data support for large-scale production.
Frequently Asked Questions
Q: How long does the high-pressure defrosting process take?
A: Typically, the ice layer can be completely removed within 10 to 15 minutes. In contrast, natural defrosting takes hours, while manual ice removal is not only time-consuming (taking about 30 minutes) but also carries the risk of damaging the equipment. Therefore, this high-pressure freeze dryer is an ideal choice for busy pilot-scale facilities.
Q: Is the silicone oil used for heat transfer safe for pharmaceutical products?
A: Yes. The equipment utilizes a closed-loop circulation system, ensuring that the silicone oil never comes into direct contact with the product. The system employs low-viscosity, food-grade silicone oil and features a fully sealed design, thereby eliminating any risk of contamination.
Q: Can vials of different specifications be processed in the same batch?
A: Yes, though we recommend processing them in separate batches for optimal results. The equipment is equipped with a manual stoppering handle that allows for the adjustment of stoppering force based on the vial type; the shelf spacing is also adjustable (up to a maximum of 100mm) to accommodate taller vials.
Q: Does the equipment come with validation documentation?
A: Yes. Each pilot-scale freeze dryer ships with test reports, IQ/OQ (Installation Qualification/Operational Qualification) protocols, and material certificates to fully meet your GMP and FDA audit requirements.
Q: What is the typical delivery lead time?
A: Standard models can be shipped within 4 to 6 weeks. Customized configurations (such as specific voltages, shelf spacing, or additional sensors) may require an extra 2 to 3 weeks. Additionally, we offer expedited service options for existing customers.
A: Typically, the ice layer can be completely removed within 10 to 15 minutes. In contrast, natural defrosting takes hours, while manual ice removal is not only time-consuming (taking about 30 minutes) but also carries the risk of damaging the equipment. Therefore, this high-pressure freeze dryer is an ideal choice for busy pilot-scale facilities.
Q: Is the silicone oil used for heat transfer safe for pharmaceutical products?
A: Yes. The equipment utilizes a closed-loop circulation system, ensuring that the silicone oil never comes into direct contact with the product. The system employs low-viscosity, food-grade silicone oil and features a fully sealed design, thereby eliminating any risk of contamination.
Q: Can vials of different specifications be processed in the same batch?
A: Yes, though we recommend processing them in separate batches for optimal results. The equipment is equipped with a manual stoppering handle that allows for the adjustment of stoppering force based on the vial type; the shelf spacing is also adjustable (up to a maximum of 100mm) to accommodate taller vials.
Q: Does the equipment come with validation documentation?
A: Yes. Each pilot-scale freeze dryer ships with test reports, IQ/OQ (Installation Qualification/Operational Qualification) protocols, and material certificates to fully meet your GMP and FDA audit requirements.
Q: What is the typical delivery lead time?
A: Standard models can be shipped within 4 to 6 weeks. Customized configurations (such as specific voltages, shelf spacing, or additional sensors) may require an extra 2 to 3 weeks. Additionally, we offer expedited service options for existing customers.
Call to Action
Ready to upgrade your pilot-scale freeze-drying equipment? Contact us today for a customized quote and a free product brochure for this high-pressure freeze dryer. We will help you select the optimal shelf configuration and provide GMP validation documentation—no empty talk, just direct, professional answers from freeze-drying experts.
