freeze dryer for pilot plant

Geliss Pilot-Scale Silicone Oil Heated Freeze Dryer for Biological Samples

ZLGJ-20F
Detalles del producto
Lugar de origen: China
Nombre de la marca: Geliss
Certificación: CE
Condiciones de pago y envío
Cantidad mínima de pedido: 1 unidad
Precio: Disponible bajo petición
Detalles de empaquetado: Caja de madera contrachapada
Tiempo de entrega: 7-30 días laborables
Condiciones de pago: T/T
Capacidad de suministro: 200 unidades/mes
Quantity:
Contact Now

Product Introduction

The ZLGJ-20F silicone oil-heated vacuum freeze dryer is a cost-effective pilot-scale unit featuring sealed silicone oil circulation heat transfer technology and a compact, integrated design. It is equipped with an original French Tecumseh hermetic dual-compressor system and a Japanese Mitsubishi PLC control system. The unit offers a freeze-drying area of ​​0.3 m² and utilizes a patented 3+1 shelf configuration with internally welded channels; the cold trap achieves a minimum temperature of ≤-75°C and a water-trapping capacity exceeding 4 kg. Manufactured in strict accordance with GMP and GB/T5226.1-1996 standards, the equipment is suitable for pilot-scale validation, small-batch trial production, and scientific research and education in fields such as biopharmaceuticals, food processing, and new chemical materials. This silicone oil-based freeze dryer is characterized by precise temperature control, stable operation, and ease of maintenance.

Core Advantages

The system utilizes a closed-loop heat transfer circuit with low-viscosity silicone oil and is equipped with an original Grundfos canned motor pump, ensuring uniform heat exchange across the entire area; shelf temperature uniformity is maintained within ±1°C (at equilibrium), effectively preventing issues such as uneven freeze-drying and inconsistent product quality. The shelves are constructed from AISI 304 stainless steel using the company's patented internal welding technology, achieving a surface roughness of Ra ≤ 0.6 μm and flatness within ±0.5 mm/m; this design eliminates sanitary dead zones, facilitates cleaning and sterilization, and fully complies with clean production requirements in the biopharmaceutical industry. Shelf temperatures are flexibly adjustable between -50°C and +70°C (no-load), with controllable ramp rates (cooling from +20°C to -40°C and heating from -40°C to +20°C both take ≤ 60 minutes); the closed-loop temperature control system ensures a stable freeze-drying curve and excellent process reproducibility. The cylindrical cold trap cools from +20°C to -40°C within 30 minutes, reaches a minimum temperature of ≤ -75°C, and offers a water-trapping capacity exceeding 4 kg; a high-pressure defrost function enables rapid, thorough defrosting, significantly shortening the freeze-drying cycle while effectively preserving the activity and nutritional value of heat-sensitive materials.

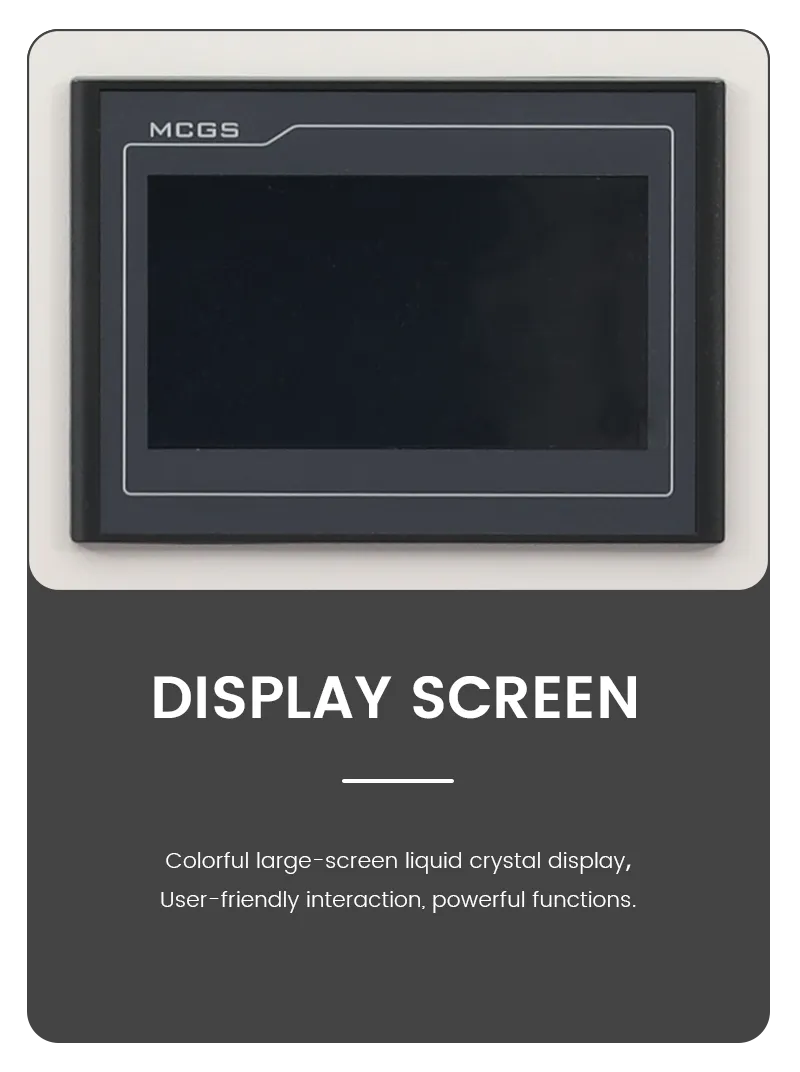

Product infographic showcasing the MCGS digital touch display screen control interface for a laboratory freeze dryer.

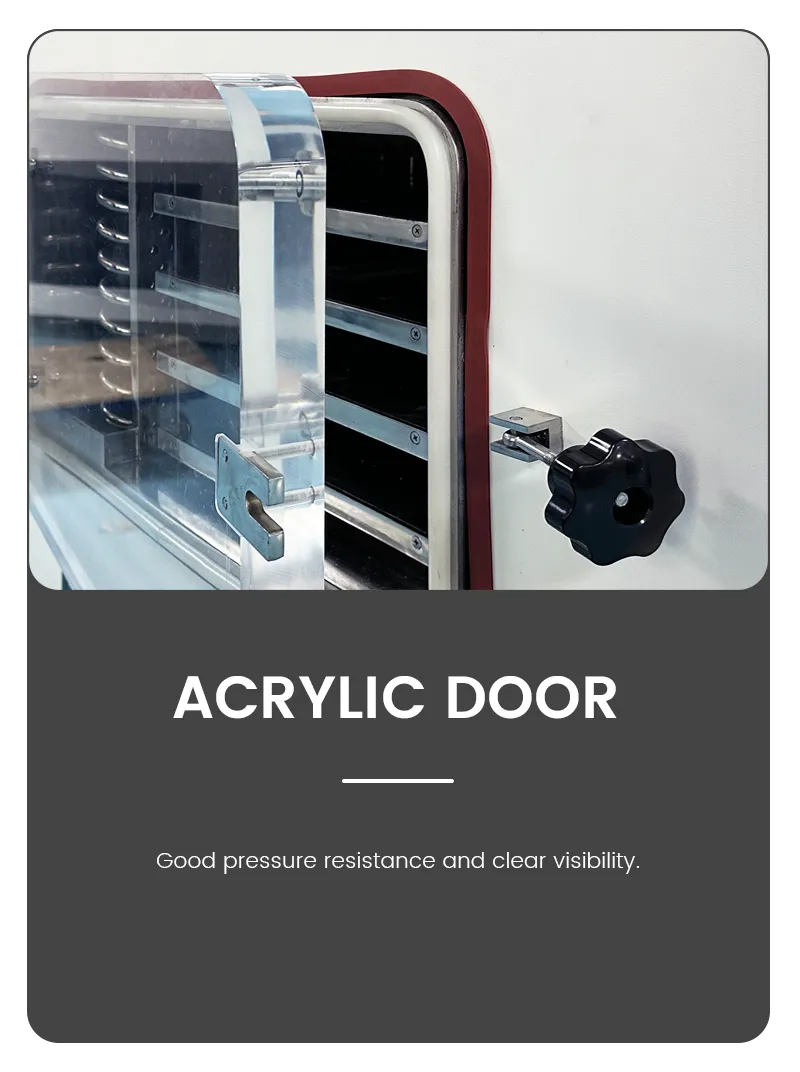

Technical infographic detailing a high-strength transparent acrylic door with clear visibility for a vacuum freeze dryer.

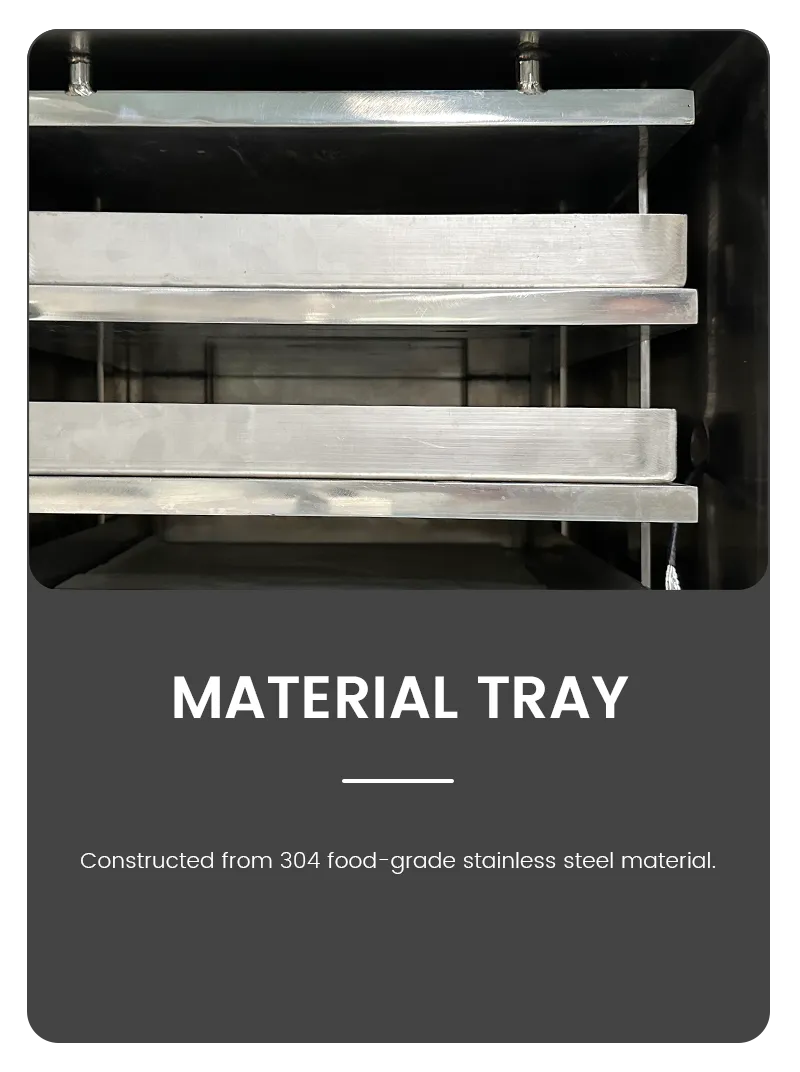

Infographic card illustrating layered 304 food-grade stainless steel material trays inside a vacuum freeze dryer lyophilizer.



Technical Specifications


MODELZLGJ-20FZLGJ-30FZLGJ-50FZLGJ-100FZLGJ-200FZLGJ-300F
Freeze-dryingarea0.2㎡0.4㎡0.6㎡1㎡2.25㎡3.15㎡
Temperature scope of shelf-50℃-+70℃(no-load)-50℃-+70℃(no-load)-50℃-+70℃(no-load)-50℃-+70℃(no-load)-50℃-+70℃(no-load)-50℃-+70℃(no-load)
shelf temperatureerror±1℃(in balance)±1℃(in balance)±1℃(in balance)±1℃(in balance)±1℃(in balance)±1℃(in balance)
Min. Temperature of condenser≤-75℃(no-load)≤-75℃(no-load)≤-75℃(no-load)≤-75℃(no-load)≤-75℃(no-load)≤-75℃(no-load)
Water-capture capability＞4Kg＞6Kg＞8Kg＞20Kg＞30Kg＞45Kg
final Vacuum degree≤ 10Pa≤ 10Pa≤ 10Pa≤ 10Pa≤ 10Pa≤ 10Pa
Layers of shelf3（Shelf spacing）70 mm4（Shelf spacing）50 mm4（Shelf spacing）70 mm6（Shelf spacing）70 mm5（Shelf spacing）80 mm7（Shelf spacing）60 mm
PowerSingle phase 220VSingle phase 220VSingle phase 220V or three-phase 380VSingle phase 220V or three-phase 380Vthree-phase 380Vthree-phase 380V
Installed power3.5KW (this is installed power, not running power)4.5KW (this is installed power, not running power)5.5 KW (this is installed power, not running power)6.5 KW (this is installed power, not running power)10.5 KW (this is installed power, not running power)14.5 KW (this is installed power, not running power)
Whole machine sizeAbout 800x800x1550mmAbout 880x735x1320mmAbout 960x785x1450mmAbout 1020x780x1700mmAbout 1200x2000x1830+350mm(oil storage tank)About 850x2500x1700+350mm(oil storage tank)
Whole machine weight (kg)About 315About 333About 447About 561About 950About 1275



Application Fields

As a cost-effective pilot-scale silicone oil freeze dryer, the equipment is widely used in various fields: in the biopharmaceutical field, it can adapt to three specifications of vials: ￠12 (2ml), ￠16 (5ml) and ￠22 (10ml), with loading capacities of ≥2123, ≥1194 and ≥631 respectively, suitable for pilot process verification and small-batch production of APIs, preparations and probiotics; in the conventional food/agricultural products field, it can be used for small-batch trial production and process optimization of freeze-dried fruits, vegetables, meats and dry goods; in the chemical/new materials field, it is suitable for the development of freeze-drying processes for conventional heat-sensitive materials and powder preparations; it is also suitable for laboratory process scale-up, research sample preparation and teaching training in universities and research institutes.

After-Sales Guarantee

We provide a 1-year free whole machine warranty. The design, manufacture and installation of ZLGJ-20F silicone oil freeze dryer strictly comply with GMP and GB/T5226.1-1996 standards, and we also provide complete testing and validation data and scheme support. The equipment uses a single-phase 220V power supply with an installed power of 3.5KW (not operating power), plug-and-play, no on-site installation required. We also provide online technical training, 7×24-hour Chinese-English online consultation and on-site maintenance services, as well as lifelong maintenance guidance and process optimization suggestions, making overseas customers more at ease and worry-free when using it.

Frequently Asked Questions

English: Q: What are the advantages of a silicone oil freeze dryer compared with ordinary electric heating freeze dryers?

English: A: The core advantage is more uniform heat transfer and higher temperature control accuracy, which can effectively avoid the problem of incomplete local freeze-drying of materials; at the same time, silicone oil has stable heat conduction, which can better protect the activity of heat-sensitive materials, and is more energy-saving and has lower maintenance costs in long-term operation, especially suitable for pilot and small-batch production scenarios.

English: Q: Is the daily maintenance of the equipment complicated? Does it require professional personnel to operate?

English: A: Daily maintenance is very simple and does not require professional personnel! You only need to regularly clean the shelves and condenser, check the vacuum pump oil level and vacuum degree, keep the equipment ventilated and dry, pay attention to high pressure and vacuum alarm prompts, and replace the vacuum pump oil regularly. The operation steps are simple and easy to understand, and we will also provide a detailed maintenance manual.

English: Q: Does the equipment support overseas transportation? Is the packaging and installation guaranteed?

English: A: Fully supports overseas transportation! The equipment adopts an integrated structure, which is convenient for foreign trade transportation. The packaging size is about 900×820×1650mm and the weight is about 361Kg. It uses shockproof and moisture-proof packaging to effectively avoid damage during transportation; the equipment is plug-and-play, no on-site installation required, and we will provide Chinese and English operation videos and online guidance to ensure quick commissioning.

English: Q: Is the equipment noisy? Is it suitable for laboratory or small workshop use?

English: A: The equipment's operating noise is ≤80dB, with excellent noise control, which is completely suitable for laboratories, small workshops and other scenarios; and the equipment is compact, small in footprint, and the integrated design does not take up extra space, which can be flexibly adapted to both scientific research training and small-batch production.

Call to Action

Consult now to get your exclusive customized plan and detailed quotation for the ZLGJ-20F silicone oil vacuum freeze dryer! Free product manual and process validation data are available, helping you efficiently complete pilot verification, small-batch production and process scale-up, and unlock a cost-effective and high-stability freeze-drying solution!
