Geliss industrial freeze dryer for fruit
HFD-30
Brand Name: Geliss
Certification: CE
Minimum Order Quantity: 1 Unit
Price: Available Upon Request
Packaging Details: Plywood Case
Delivery Time: 7-30 Working Days
Payment Terms: T/T
Supply Ability: 300 Units/Month
Certification: CE
Minimum Order Quantity: 1 Unit
Price: Available Upon Request
Packaging Details: Plywood Case
Delivery Time: 7-30 Working Days
Payment Terms: T/T
Supply Ability: 300 Units/Month
Quantity:
Recommend Products
Geliss small freeze dryer for homeBrand Name: Geliss Certification: CE Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthHFD-1
Geliss Freeze Dryer for home and fruitsBrand Name: Geliss Certification: CE Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthHFD-4
Geliss food freeze dryer for homeBrand Name: Geliss Certification: CE Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthHFD-6
Geliss Home Freeze Dryer for ProduceBrand Name: Geliss Certification: CE Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthHFD-8
Product Overview

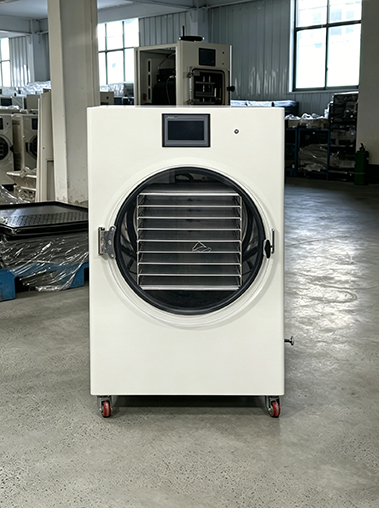

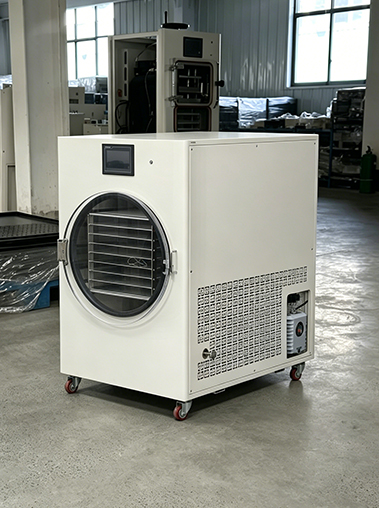

HFD-30 Extra-Large Capacity Home Freeze Dryer – 8 Stainless Steel Trays, 15 Preset Recipes – Freeze-Drying Equipment for Large Families or Light Commercial Use
Building upon the HFD-25 model, this unit offers enhanced processing capacity; it comes standard with eight food-grade stainless steel trays and can process 40–42 kg of fresh ingredients per batch. It supports the storage of 15 freeze-drying programs—comprising four common presets and 11 custom settings—balancing user-friendly home operation with high-capacity processing capabilities. The device utilizes a two-stage cascade deep-freezing system and efficient vacuum freeze-drying technology, achieving cold trap temperatures as low as -60°C. Thanks to its quiet operation and intelligent digital control system, it enables unattended batch processing and is suitable for a wide range of materials, including fruits, vegetables, meats, baby food, nutritional supplements, traditional Chinese herbs, and pet treats. Employing the principle of low-temperature sublimation, the process locks in the ingredients' original flavors and active compounds without additives, maximizing nutrient retention. It offers an ideal solution for large families facing food preservation challenges—overcoming the inefficiencies of home-based freeze-drying—while also meeting the needs of small-scale commercial processing.
What You Can Make
This appliance handles a wide range of tasks—from daily food preservation and the batch production of freeze-dried fruits, vegetables, jerky, and pet treats to making baby food—allowing you to prepare a full week's supply in a single run. It is also ideal for families to batch-process traditional Chinese medicinal herbs and nourishing ingredients, locking in nutrients for greater peace of mind. For homemade snacks, it enables the large-scale production of additive-free freeze-dried treats—perfect for personal consumption, gifting, or community group buying.
On the commercial front, it fully meets the small-batch processing needs of pet treat studios, home bakeries, and community group-buying operations, offering stable output with a low initial investment. The unit is plug-and-play, requiring no complex installation; it helps households reduce food waste while enabling commercial users to lower both equipment and operating costs.
On the commercial front, it fully meets the small-batch processing needs of pet treat studios, home bakeries, and community group-buying operations, offering stable output with a low initial investment. The unit is plug-and-play, requiring no complex installation; it helps households reduce food waste while enabling commercial users to lower both equipment and operating costs.
Technical Specifications
| MODEL | HFD-1 | HFD-4 | HFD-6 | HFD-8 | HFD-15 | HFD-20 | HFD-25 | HFD-30 | HFD-50 |
|---|---|---|---|---|---|---|---|---|---|
| Freeze dried area | 0.1㎡ | 0.4㎡ | 0.6㎡ | 0.92㎡ | 1.45㎡ | 2.16㎡ | 2.52㎡ | 3㎡ | 4.95㎡ |
| Cold trap temperature | -35°C (Customizable to -50°C or -80°C) | -60℃ | -55℃ | ||||||
| processing capacity | 1-2KG/batch | 4-6KG/batch | 6-8KG/batch | 10-12KG/batch | 18-20KG/batch | 26-28KG/batch | 32-35KG/batch | 40-42KG/batch | 75KG/batch |
| Ultimate vacuum | Below 2Pa | ||||||||
| Material tray size | 145*275(mm) | 200*425(mm) | 315*430(mm) | 265*430(mm) | 265*780(mm) | 400*900(mm) | 400*900(mm) | 420*898(mm) | 500mm*550mm |
| Number of material trays | 3 pieces | 4 pieces | 4 pieces | 8 pieces | 7 pieces | 6 pieces | 7 pieces | 8 pieces | 18 pieces |
| Material tray spacing | 43mm | 45mm | 70mm | 38mm | 43mm | 53mm | 45mm | 45mm | 47mm |
| pumping speed | 2L/S | 2L/S | 4L/S | 4L/S | 4L/S | 4L/S | 4L/S | 6L/S | 8L/S |
| Water harvesting ability | 3kg/24h | 4kg/24h | 6kg/24h | 10kg/24h | 18kg/24h | 26kg/24h | 32kg/24h | 40kg/24h | 75kg/24h |
| Operating noise | ≤60dB | ≤70dB | |||||||
| supply voltage | 220V/50HZ （Customizable 110V or 380V） | Three phase electricity 380V | |||||||
| Machine dimensions | 450*500*825 (mm) | 500* 640*900 (mm) | 680* 640*1180(mm) | 680* 640*1180(mm) | 680* 990*1180(mm) | 780* 1200*1310(mm) | 780* 1200*1310(mm) | 827* 1100*1350(mm) | 1000* 2010*1560(mm) |
| net weight | 73kg | 84kg | 125kg | 130kg | 186kg | 269kg | 279kg | 335kg | 700kg |
| Package size | 570*680*1170mm | 630* 840*1260(mm) | 820* 800*1540(mm) | 820* 800*1540(mm) | 820* 1170*1600(mm) | 910* 1400*1550(mm) | 910* 1400*1550(mm) | 940* 1290*1500(mm) | 1200* 2150*1910(mm) |
| Total weight with packaging | 113kg | 139kg | 197kg | 203kg | 281kg | 370kg | 380kg | 439kg | 901kg |
| Whole machine power | 1100W | 1500W | 2000W | 2500W | 3500W | 3800W | 4100W | 4500W | 9500KW |
Why Choose This Extra‑Large Freeze Dryer?

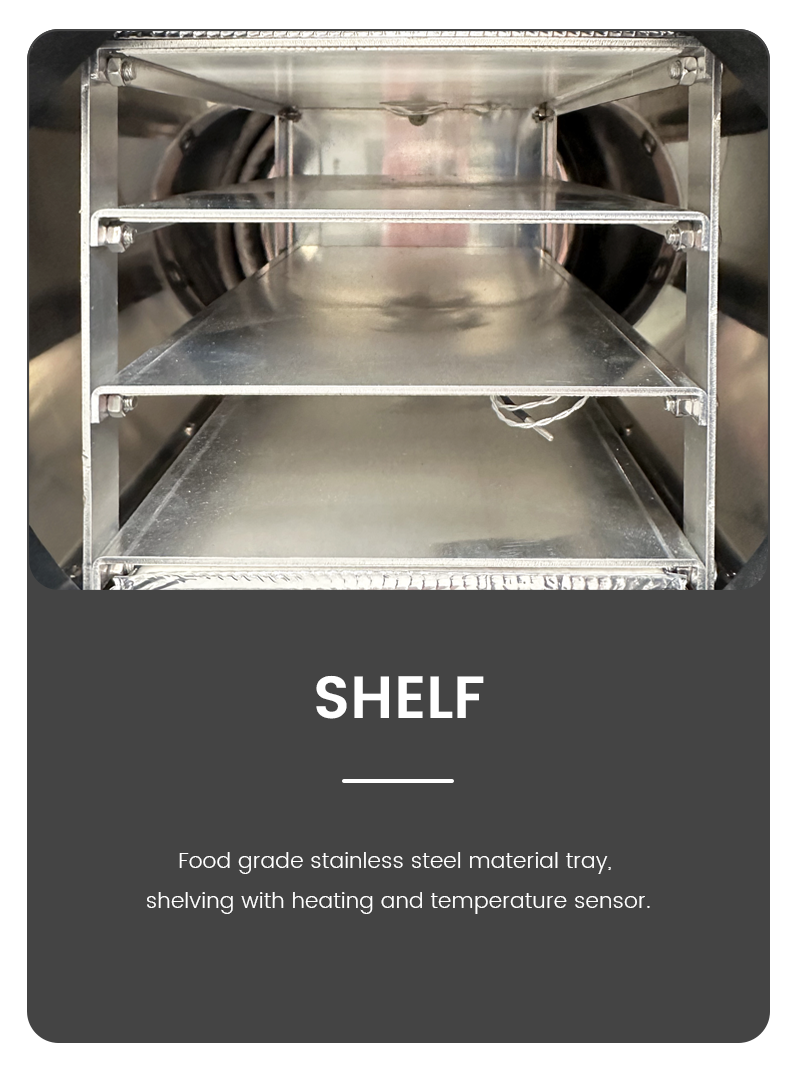

The detachable food-grade 304 or 316 stainless steel trays are crafted from high-quality, thickened material, offering corrosion resistance, high-temperature tolerance, and robust load-bearing capacity. Featuring a modular, tiered layout and optimized spacing, the trays accommodate large volumes of ingredients while ensuring uniform heating across all levels (with temperature control precision maintained within ±0.8°C), thereby significantly reducing freeze-drying times and enhancing processing efficiency. A highly transparent acrylic drying chamber door ensures clear visibility, while real-time displays of temperature, pressure, and vacuum levels allow users to fully monitor and manage the entire freeze-drying process. Remote control capabilities enable real-time viewing of freeze-drying curves and adjustments to temperature and time via smartphones, tablets, and PCs.
Frequently Asked Questions
Q: Can it really freeze-dry candy without making a mess?
A: Yes. Its dedicated candy freeze-drying mode prevents the candy from melting or sticking together. Simply spread items like Skittles or gummy candies flat on the trays, press start, and you’ll have a crispy finished product in just a few hours.
Q: Is it suitable for making dog treats?
A: Absolutely. Its low-temperature vacuum technology effectively inhibits bacterial growth, making it ideal for processing raw meat, cooked meat, fish, and vegetables.
Q: How many custom programs can be saved?
A: It features 11 custom program slots and 4 preset programs. You can name the programs based on the type of treat (e.g.,"Skittles,""Chicken Treats,""Vanilla Ice Cream") and recall them at any time.
Q: Is it noisy during operation?
A: No, the noise level is only 60 decibels (or lower)—quieter than a dishwasher. It is perfect for use in home or small commercial kitchens.
A: Yes. Its dedicated candy freeze-drying mode prevents the candy from melting or sticking together. Simply spread items like Skittles or gummy candies flat on the trays, press start, and you’ll have a crispy finished product in just a few hours.
Q: Is it suitable for making dog treats?
A: Absolutely. Its low-temperature vacuum technology effectively inhibits bacterial growth, making it ideal for processing raw meat, cooked meat, fish, and vegetables.
Q: How many custom programs can be saved?
A: It features 11 custom program slots and 4 preset programs. You can name the programs based on the type of treat (e.g.,"Skittles,""Chicken Treats,""Vanilla Ice Cream") and recall them at any time.
Q: Is it noisy during operation?
A: No, the noise level is only 60 decibels (or lower)—quieter than a dishwasher. It is perfect for use in home or small commercial kitchens.
