Geliss Basic Capping Lab Freeze Dryer
Place Of Origin: China
Brand Name: Geliss
Certification: CE
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Available Upon Request
Packaging Details: Plywood Case
Delivery Time: 7-30 Working Days
Payment Terms: T/T
Supply Ability: 300 Units/Month
Geliss Standard Benchtop Lab Freeze DryerBrand Name: Geliss Certification: CE Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-10
Geliss Standard Multi-manifold Laboratory Vacuum Freeze DryerProduct Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-10MM
Geliss Benchtop Wide-Mouth Bottle Freeze DryerProduct Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-10JPR
Geliss Table Top Egg-Shaped Flask Freeze DryerProduct Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-10FTR
Product Introduction
The ZLGJ-18ST is a high-capacity, entry-level laboratory freeze dryer featuring a stoppering function. It offers a freeze-drying area of 0.09 m², a cold trap temperature as low as -60°C (with an optional -80°C version available), and a single-batch ice-capturing capacity of 6 kg. Equipped with built-in independent pre-freezing, one-touch defrosting, maintenance reminders, and vacuum alarm functions, it serves as a practical and reliable choice for universities, biological research institutes, pharmaceutical R&D laboratories, and quality control centers seeking an integrated solution for basic batch freeze-drying and vial stoppering.
Core Advantages
Technical Specifications
| MODEL | ZLGJ-10ST | ZLGJ-10MM-ST | ZLGJ-12ST | ZLGJ-12MM-ST | ZLGJ-18ST | ZLGJ-18MM-ST |
|---|---|---|---|---|---|---|
| Model / Configuration | Ordinary Type | Multi‑manifold Type | Ordinary Type | Multi‑manifold Type | Ordinary Type | Multi‑manifold Type |
| Freeze Dried Area | 0.08 m² | 0.08 m² | 0.09 m² | |||
| Cold Trap Temperature | -55℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | |||
| Water Capture Capacity (kg/batch) | 4 kg | 4 kg | 6 kg | |||
| Standard Vacuum Degree (no‑load) | ≤5 Pa | ≤5 Pa | ≤5 Pa | |||
| Ultimate Vacuum | 0.1 Pa | 0.1 Pa | 0.1 Pa | |||
| Pumping Speed | 2 L/s | 2 L/s | 2 L/s | |||

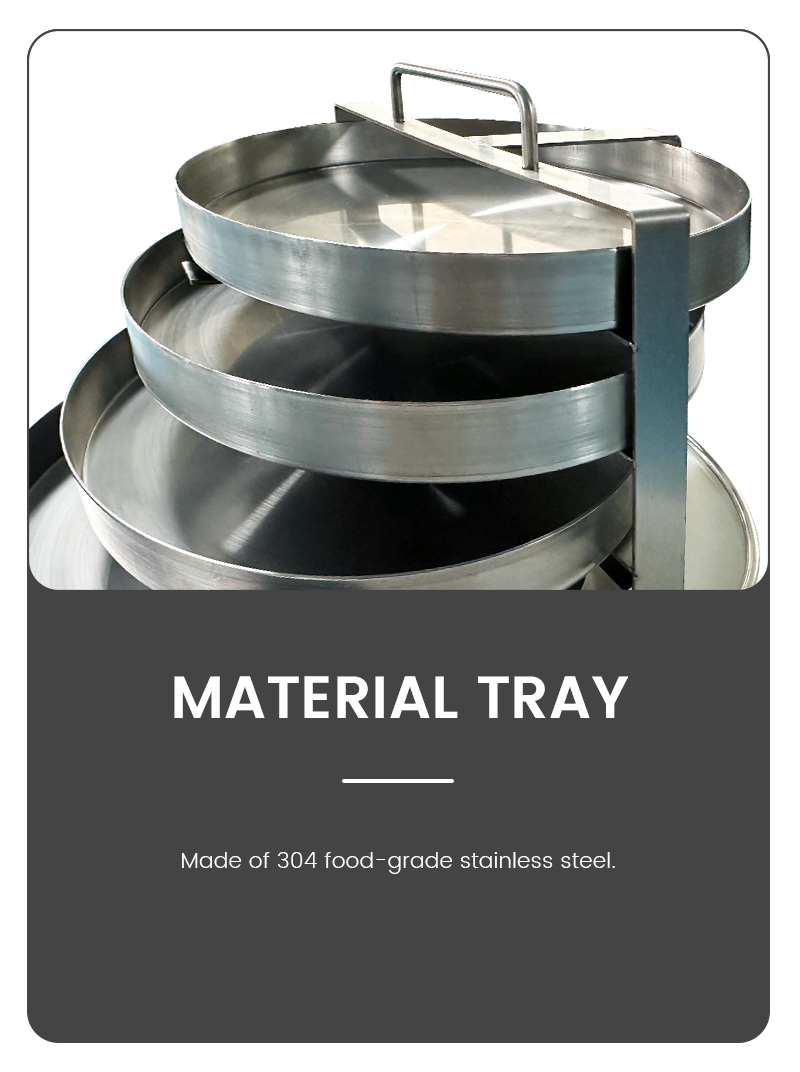

| Material Tray Specification | Φ180 mm × 3 layers, spacing 100 mm | Φ180 mm × 3 layers, spacing 100 mm | Φ200 mm × 3 layers, spacing 100 mm | |||
| Vial / Flask Loading Capacity | Vials: Φ12mm: 560 pcs; Φ16mm:318 pcs; Φ22mm: 165 pcs | Vials: Φ12mm: 560 pcs; Φ16mm:318 pcs; Φ22mm:165 pcsEggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Vials: Φ12mm: 560 pcs; Φ16mm:318 pcs; Φ22mm: 165 pcs | Vials: Φ12mm: 560 pcs; Φ16mm:318 pcs; Φ22mm:165 pcsEggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Vials: Φ12mm: 630 pcs; Φ16mm:358 pcs; Φ22mm: 180 pcs | Vials: Φ12mm: 630 pcs; Φ16mm:358 pcs; Φ22mm:180 pcsEggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 |
| Total Power (including vacuum pump) | 950 W | 950 W | 1100 W | |||
| Machine Dimensions (W×D×H) | 520×600×400 mm | 480×600×770 mm | 560×560×980 mm | |||
| Net Weight (machine only) | 48 kg | 63kg | 63kg | |||
| Power Supply | AC220V 50Hz / 110V 60Hz | |||||
| Warranty Period | 1 year (whole machine) | |||||
After-Sales Guarantee
We provide a comprehensive one-year warranty on the entire unit and lifetime technical support. The ZLGJ-18ST standard freeze dryer with a stoppering function complies with international laboratory safety standards and supports AC 220V/50Hz or 110V/60Hz power supplies, making it suitable for laboratory environments worldwide. The unit has a net weight of 88 kg and dimensions of 560×560×980 mm; the packaged dimensions are 630×670×1500 mm (gross weight: 150 kg), facilitating easy transport. Additionally, we provide detailed operation manuals, validation documentation, and 24/7 multilingual online support to promptly address any questions regarding freeze-drying, stoppering, or equipment operation.
Frequently Asked Questions
A: It can process 630 vials (Φ12mm), 358 vials (Φ16mm), or 180 vials (Φ22mm), making it ideal for standard laboratory processing needs.
Q: Does the stoppering mechanism require special maintenance?
A: No. The handle is detachable and can be cleaned with mild detergent; no specialized tools are required.
Q: Is separate pre-freezing equipment required?
A: No. The unit features a built-in, independent pre-freezing function, allowing the loading, pre-freezing, drying, and stoppering processes to be completed within the same chamber.
Q: Is the KF25 clamp easy to use?
A: Yes. It allows for tool-free, quick connection and disconnection while ensuring a tight vacuum seal with every connection.
Q: Can freeze-drying data be exported?
A: Yes. All parameters are automatically saved and can be exported via USB; remote control options are also available.
Call to Action
ReContact us today to receive a tailored selection plan, a detailed quote, and the operation manual for the Geliss ZLGJ-18ST—a standard laboratory freeze dryer featuring a vial-capping function. Choose this stable, reliable unit to meet your laboratory's routine batch freeze-drying and capping needs, and unlock a more practical, convenient solution for sample processing.
