Geliss Manifold Lab Freeze Dryer for Batch Vials
ZLGJ-18MM
Product Details
Place Of Origin: China
Brand Name: Geliss
Certification: CE
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Available Upon Request
Packaging Details: Plywood Case
Delivery Time: 7-30 Working Days
Payment Terms: T/T
Supply Ability: 300 Units/Month
Place Of Origin: China
Brand Name: Geliss
Certification: CE
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Available Upon Request
Packaging Details: Plywood Case
Delivery Time: 7-30 Working Days
Payment Terms: T/T
Supply Ability: 300 Units/Month
Quantity:
Recommend Products
Geliss Standard Benchtop Lab Freeze DryerBrand Name: Geliss Certification: CE Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-10
Geliss Standard Multi-manifold Laboratory Vacuum Freeze DryerProduct Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-10MM
Geliss Benchtop Wide-Mouth Bottle Freeze DryerProduct Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-10JPR
Geliss Table Top Egg-Shaped Flask Freeze DryerProduct Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-10FTR
Product Introduction
The ZLGJ-18 multi-manifold laboratory freeze dryer features a multi-manifold structure, enabling simultaneous freeze-drying of various experimental containers. It has four 240mm material trays (70mm spacing between trays), accommodating a large number of vials and suitable for high-efficiency, batch experimental needs.
Core Advantages
This is a large, multi-manifold, high-efficiency laboratory freeze dryer that can connect to multiple containers simultaneously to achieve batch freeze drying of samples, significantly improving experimental efficiency and saving daily batch testing time.
Technical Specifications
| MODEL | ZLGJ-10 | ZLGJ-10MM | ZLGJ-10JPR | ZLGJ-10FTR | ZLGJ-12 | ZLGJ-12MM | ZLGJ-12JPR | ZLGJ-12FTR | ZLGJ-18 | ZLGJ-18MM | ZLGJ-18JPR | ZLGJ-18FTR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model / Configuration | Ordinary Type | Multi‑manifold Type | Wide‑mouth Bottle T‑type Holder | Eggplant Bottle T‑type Holder | Ordinary Type | Multi‑manifold Type | Wide‑mouth Bottle T‑type Holder | Eggplant Bottle T‑type Holder | Ordinary Type | Multi‑manifold Type | Wide‑mouth Bottle T‑type Holder | Eggplant Bottle T‑type Holder |
| Freeze Dried Area | 0.1 m² | 0.1 m² | N/A (bottle volume) | N/A (bottle volume) | 0.12 m² | 0.12 m² | N/A (bottle volume) | N/A (bottle volume) | 0.18 m² | 0.18 m² | N/A (bottle volume) | N/A (bottle volume) |
| Cold Trap Temperature | -55℃ (optional -80℃) | -55℃ (optional -80℃) | -55℃ (optional -80℃) | -55℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) |
| Water Capture Capacity (kg/batch) | 4 kg | 4 kg | 4 kg | 4 kg | 4 kg | 4 kg | 4 kg | 4 kg | 6 kg | 6 kg | 6 kg | 6 kg |
| Standard Vacuum Degree (no‑load) | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa |
| Ultimate Vacuum | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa |
| Pumping Speed | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s |

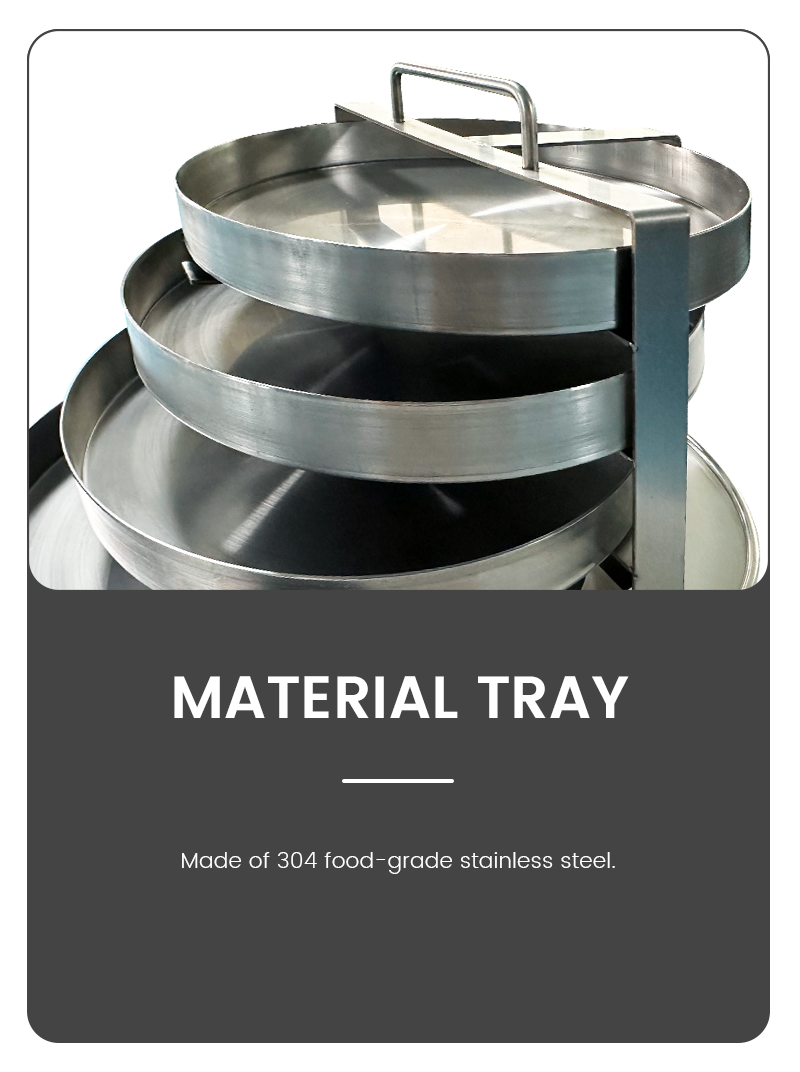

| Material Tray Specification | Φ180 mm × 4 layers, spacing 70 mm | Φ180 mm × 4 layers, spacing 70 mm | Tray drying (similar) | Tray drying (similar) | Φ200 mm × 4 layers, spacing 70 mm | Φ200 mm × 4 layers, spacing 70 mm | Tray drying (similar) | Tray drying (similar) | Φ240 mm × 4 layers, spacing 70 mm | Φ240 mm × 4 layers, spacing 70 mm | Tray drying (similar) | Tray drying (similar) |
| Vial / Flask Loading Capacity | Vials: Φ12mm: 700 pcs; Φ16mm: 400 pcs; Φ22mm: 210 pcs | Vials: Φ12mm: 700; Φ16mm: 400; Φ22mm: 210 Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Vials: Φ12mm: 849 pcs; Φ16mm: 470 pcs; Φ22mm: 252 pcs | Vials: Φ12mm: 849; Φ16mm: 470; Φ22mm: 252 Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Vials: Φ12mm: 1270 pcs; Φ16mm:716 pcs; Φ22mm: 379 pcs | Vials: Φ12mm: 1270 pcs; Φ16mm:716 pcs; Φ22mm: 379 pcs Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 |
| Total Power (including vacuum pump) | 950 W | 950 W | 950 W | 950 W | 950 W | 950 W | 950 W | 950 W | 1100 W | 1100 W | 1100 W | 1100 W |
| Machine Dimensions (W×D×H) | 520×600 ×400 mm | 520×600 ×400 mm | 520×600 ×400 mm | 520×600 ×400 mm | 480×600 ×770 mm | 480×600 ×770 mm | 480×600 ×770 mm | 480×600 ×770 mm | 560×560 ×980 mm | 560×560 ×980 mm | 560×560 ×980 mm | 560×560 ×980 mm |
| Net Weight (machine only) | 48 kg | 48 kg | 48 kg | 48 kg | 63 kg | 63 kg | 63 kg | 63 kg | 88 kg | 88 kg | 88 kg | 88 kg |
| Power Supply | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz |
| Warranty Period | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) |
Application Fields
This equipment is widely used in universities and research laboratories for the freeze-drying of microbial strains, biological extracts, and colloidal samples. It also serves pharmaceutical R&D and production facilities for processing biochemical agents, probiotics, and pilot-scale new drug samples, as well as for the batch freeze-drying of vials. Additionally, it finds application in biological research institutions for freeze-drying biological samples and preserving heat-sensitive substances and microbial strains.
Frequently Asked Questions
Q: How many vials can this freeze dryer accommodate per batch?
A: It holds 1,270 vials (Φ12mm), 716 vials (Φ16mm), or 379 vials (Φ22mm) per batch; it also accommodates two 100–500ml eggplant-shaped flasks.

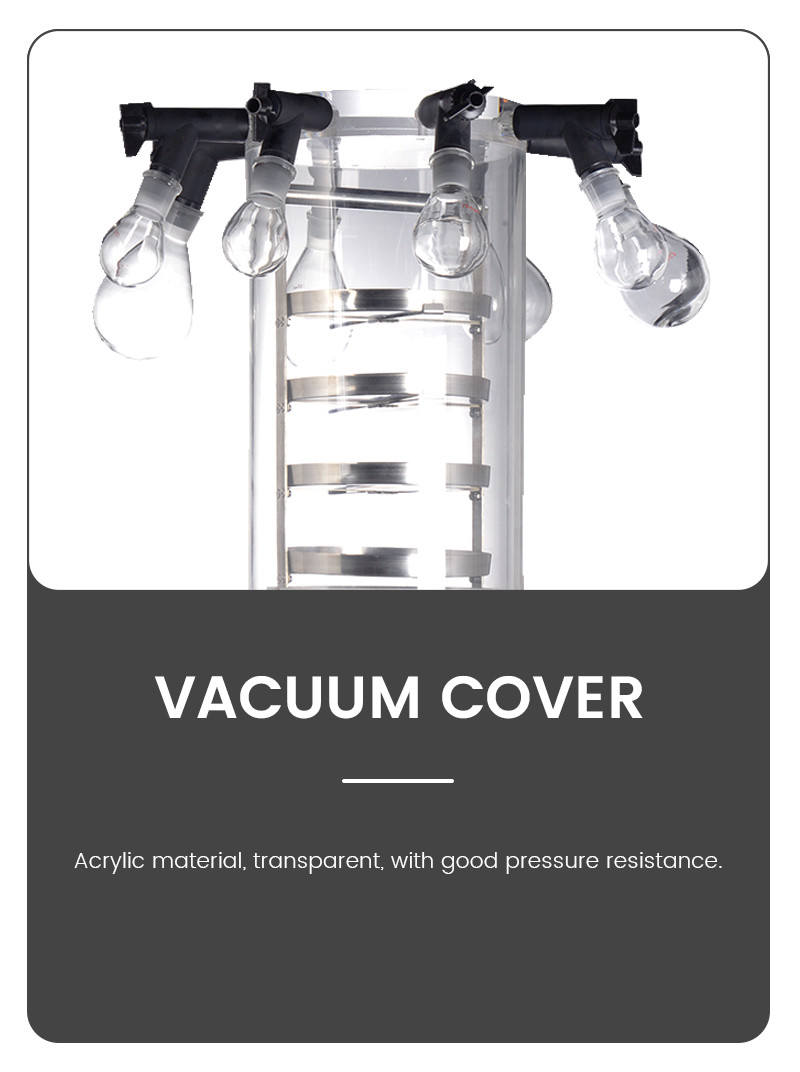

Q: Does it support the use of eggplant-shaped flasks?
A: Yes, this laboratory freeze dryer with a manifold accommodates two eggplant-shaped flasks (available in 100ml, 150ml, 250ml, and 500ml sizes).
Q: Is the manifold design easy to clean?
A: The manifold ports and trays are detachable, making cleaning and disinfection easy.
Q: Can freeze-drying data be exported?
A: All parameters are automatically saved and can be exported via USB; remote control options are also available.
Q: Is a separate pre-freezing freezer required?
A: No. The cold trap features an independent pre-freezing function, allowing the loading, pre-freezing, and drying processes to be completed on a single unit.
A: It holds 1,270 vials (Φ12mm), 716 vials (Φ16mm), or 379 vials (Φ22mm) per batch; it also accommodates two 100–500ml eggplant-shaped flasks.
Q: Does it support the use of eggplant-shaped flasks?
A: Yes, this laboratory freeze dryer with a manifold accommodates two eggplant-shaped flasks (available in 100ml, 150ml, 250ml, and 500ml sizes).
Q: Is the manifold design easy to clean?
A: The manifold ports and trays are detachable, making cleaning and disinfection easy.
Q: Can freeze-drying data be exported?
A: All parameters are automatically saved and can be exported via USB; remote control options are also available.
Q: Is a separate pre-freezing freezer required?
A: No. The cold trap features an independent pre-freezing function, allowing the loading, pre-freezing, and drying processes to be completed on a single unit.
Call to Action
Contact us today for a customized quote and a free product brochure for our manifold laboratory freeze dryers. We will help you select the ideal manifold configuration and provide comprehensive technical support—delivering practical, actionable advice rather than empty talk.
📦 Bulk Purchasing & Institutional Inquiries: Special discounts available for universities, pharmaceutical R&D laboratories, and testing centers.
