Geliss Wide-mouth Jar T-Type Rack Laboratory Vacuum Freeze Dryer
Place Of Origin: China
Brand Name: Geliss
Certification: CE
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Available Upon Request
Packaging Details: Plywood Case
Delivery Time: 7-30 Working Days
Payment Terms: T/T
Supply Ability: 300 Units/Month
Geliss Standard Benchtop Lab Freeze DryerBrand Name: Geliss Certification: CE Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-10
Geliss Standard Multi-manifold Laboratory Vacuum Freeze DryerProduct Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-10MM
Geliss Benchtop Wide-Mouth Bottle Freeze DryerProduct Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-10JPR
Geliss Table Top Egg-Shaped Flask Freeze DryerProduct Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-10FTR
Product Overview

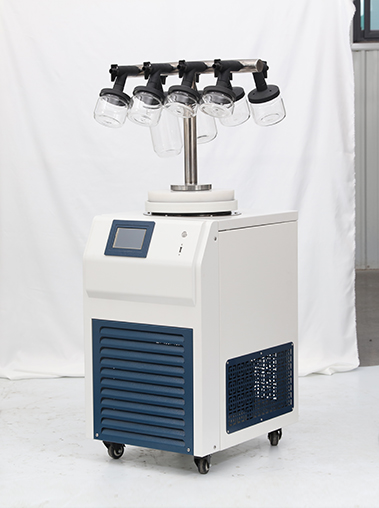

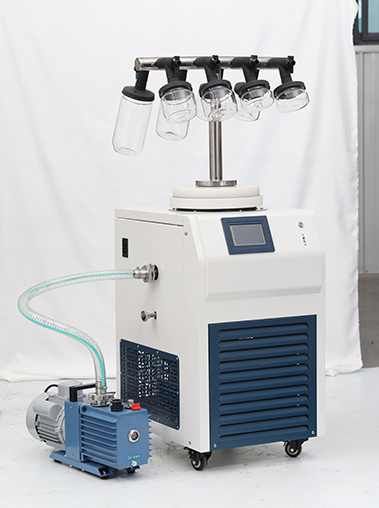

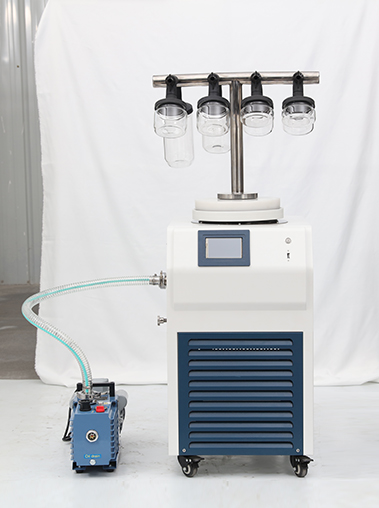

The ZLGJ-18 is a wide-mouth bottle freeze dryer featuring a T-shaped rack, designed to meet the need for stable, high-volume processing of wide-mouth bottle samples. If you have ever encountered issues with bottles tipping over during the freeze-drying process, you will certainly appreciate the unique advantages of this unit. Its specialized T-shaped rack features an anti-tip design that securely supports wide-mouth bottles in 100ml, 150ml, 250ml, and 500ml sizes (two of each) while maintaining the optimal angle for uniform drying. With a single-batch water-trapping capacity of 6kg and a built-in independent pre-freezing function, it eliminates the need for a separate ultra-low temperature freezer. The unit is equipped with a Secop compressor (operating noise ≤55dB) and a 7-inch touchscreen that supports USB data export. It delivers high-efficiency water trapping and integrates practical features such as"one-touch defrosting,"maintenance reminders, and vacuum alarms, making it a reliable workhorse for routine laboratory sample preparation.
Key Features
- Custom T‑rack anti‑tip design – Holds 2 each of 100/150/250/500ml wide‑mouth bottles. Secure, no tilting. Detachable for cleaning. A true custom T-rack wide-mouth bottle freeze dryer.
- High‑efficiency water capture – Cold trap to -60°C (‑80°C optional), 6kg per batch. Professional gas guiding for uniform temp and fast vapor capture.
- Vertical compact layout – 560×560×980mm, 88kg. Saves bench space while increasing capacity. Ideal lab vertical wide-mouth bottle lyophilizer.

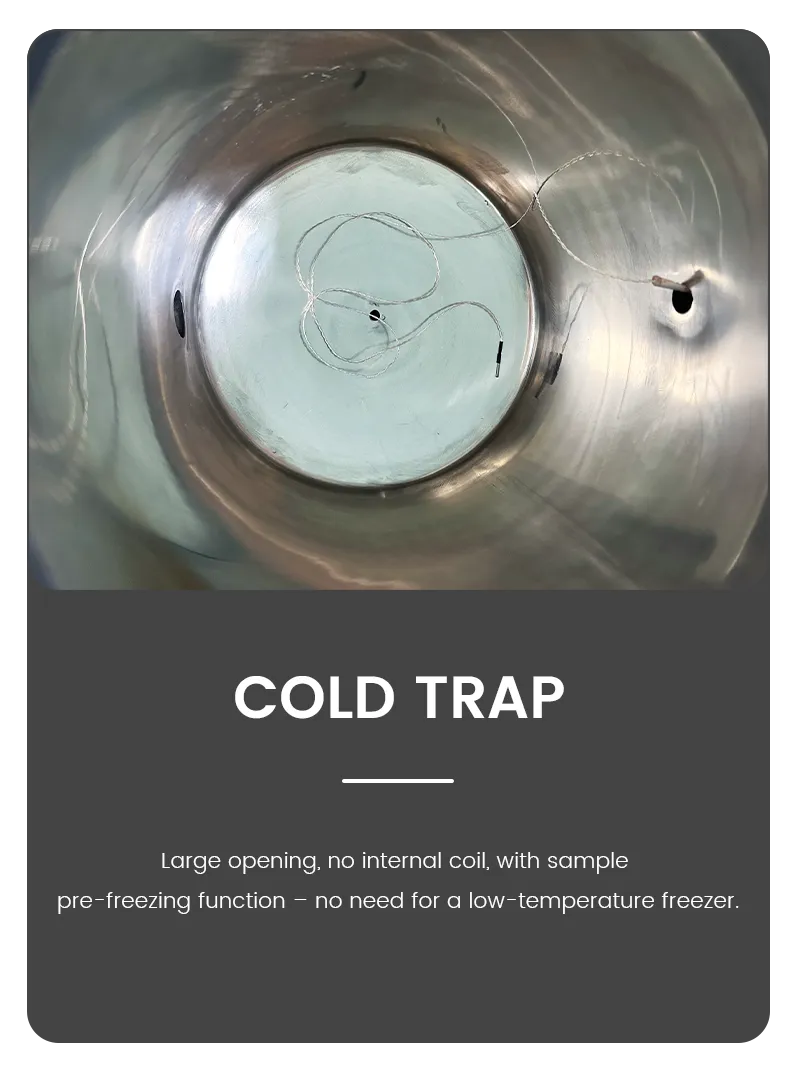

- Independent pre‑freezing & one‑key defrost – Pre‑freeze samples directly in cold trap. No extra freezer needed. Speeds up batch turnaround.

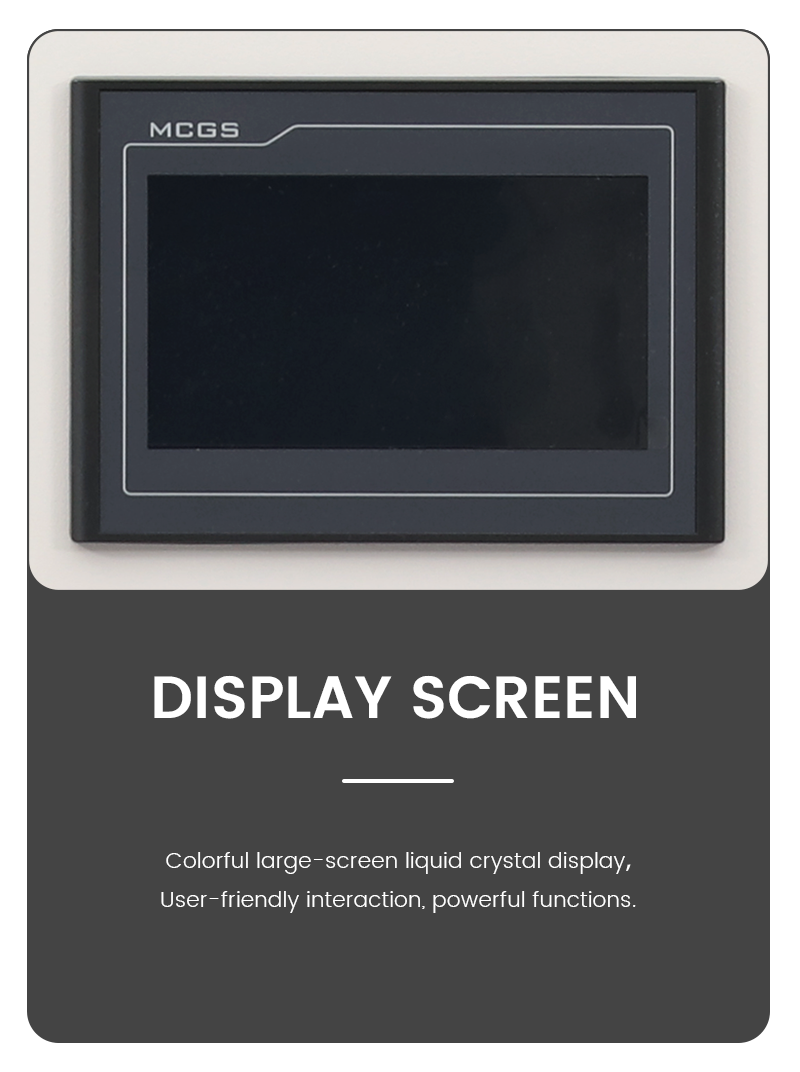

- Smart touch & data safety – 7″ color screen, real‑time temp/vacuum/runtime, USB export, misoperation lock, optional remote control.
- Quiet & durable – Secop compressor, ≤55dB, maintenance reminder, vacuum alarm. A high-efficiency water capture freeze dryer built to last.
Technical Specifications
| MODEL | ZLGJ-10 | ZLGJ-10MM | ZLGJ-10JPR | ZLGJ-10FTR | ZLGJ-12 | ZLGJ-12MM | ZLGJ-12JPR | ZLGJ-12FTR | ZLGJ-18 | ZLGJ-18MM | ZLGJ-18JPR | ZLGJ-18FTR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model / Configuration | Ordinary Type | Multi‑manifold Type | Wide‑mouth Bottle T‑type Holder | Eggplant Bottle T‑type Holder | Ordinary Type | Multi‑manifold Type | Wide‑mouth Bottle T‑type Holder | Eggplant Bottle T‑type Holder | Ordinary Type | Multi‑manifold Type | Wide‑mouth Bottle T‑type Holder | Eggplant Bottle T‑type Holder |
| Freeze Dried Area | 0.1 m² | 0.1 m² | N/A (bottle volume) | N/A (bottle volume) | 0.12 m² | 0.12 m² | N/A (bottle volume) | N/A (bottle volume) | 0.18 m² | 0.18 m² | N/A (bottle volume) | N/A (bottle volume) |
| Cold Trap Temperature | -55℃ (optional -80℃) | -55℃ (optional -80℃) | -55℃ (optional -80℃) | -55℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) |
| Water Capture Capacity (kg/batch) | 4 kg | 4 kg | 4 kg | 4 kg | 4 kg | 4 kg | 4 kg | 4 kg | 6 kg | 6 kg | 6 kg | 6 kg |
| Standard Vacuum Degree (no‑load) | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa |
| Ultimate Vacuum | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa |
| Pumping Speed | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s |
| Material Tray Specification | Φ180 mm × 4 layers, spacing 70 mm | Φ180 mm × 4 layers, spacing 70 mm | Tray drying (similar) | Tray drying (similar) | Φ200 mm × 4 layers, spacing 70 mm | Φ200 mm × 4 layers, spacing 70 mm | Tray drying (similar) | Tray drying (similar) | Φ240 mm × 4 layers, spacing 70 mm | Φ240 mm × 4 layers, spacing 70 mm | Tray drying (similar) | Tray drying (similar) |
| Vial / Flask Loading Capacity | Vials: Φ12mm: 700 pcs; Φ16mm: 400 pcs; Φ22mm: 210 pcs | Vials: Φ12mm: 700; Φ16mm: 400; Φ22mm: 210 Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Vials: Φ12mm: 849 pcs; Φ16mm: 470 pcs; Φ22mm: 252 pcs | Vials: Φ12mm: 849; Φ16mm: 470; Φ22mm: 252 Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Vials: Φ12mm: 1270 pcs; Φ16mm:716 pcs; Φ22mm: 379 pcs | Vials: Φ12mm: 1270 pcs; Φ16mm:716 pcs; Φ22mm: 379 pcs Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 |
| Total Power (including vacuum pump) | 950 W | 950 W | 950 W | 950 W | 950 W | 950 W | 950 W | 950 W | 1100 W | 1100 W | 1100 W | 1100 W |
| Machine Dimensions (W×D×H) | 520×600 ×400 mm | 520×600 ×400 mm | 520×600 ×400 mm | 520×600 ×400 mm | 480×600 ×770 mm | 480×600 ×770 mm | 480×600 ×770 mm | 480×600 ×770 mm | 560×560 ×980 mm | 560×560 ×980 mm | 560×560 ×980 mm | 560×560 ×980 mm |
| Net Weight (machine only) | 48 kg | 48 kg | 48 kg | 48 kg | 63 kg | 63 kg | 63 kg | 63 kg | 88 kg | 88 kg | 88 kg | 88 kg |
| Power Supply | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz |
| Warranty Period | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) |
What Makes This High-Efficiency Water Capture Freeze Dryer Different?
This unit boasts exceptional water vapor capture capabilities. While many laboratory freeze dryers suffer from prolonged processing times due to slow vapor capture rates, this vertical, wide-mouth model utilizes specialized airflow guidance technology to ensure uniform cold trap temperatures, thereby achieving rapid and stable water vapor capture. Its 6 kg processing capacity allows you to easily handle samples with high water content.
The vertical, benchtop design embodies a user-centric philosophy: the 560×560×980 mm footprint saves valuable bench space while providing ample loading capacity. The T-shaped sample rack features a detachable design, facilitating easy cleaning and autoclaving. The intuitive touchscreen interface is simple to operate; even new laboratory staff can quickly master parameter settings and batch operations after just a brief demonstration. Additionally, the unit supports USB data logging, making it easy to track parameters for scientific publication or to ensure compliance with GLP (Good Laboratory Practice) standards.
Frequently Asked Questions
A: 100ml, 150ml, 250ml, and 500ml — two of each per batch. The T‑rack holds them securely.
A: No. This lab vertical wide-mouth bottle lyophilizer has built‑in independent pre‑freezing. Load, pre‑freeze, then start drying in the same chamber.
A: Yes. The high-efficiency water capture freeze dryer automatically saves all parameters. Use USB to export for your records.
A: Yes, it's detachable and can be washed or autoclaved.
A: No, ≤55dB — quieter than most lab freezers.
Call to Action
Ready to simplify wide‑mouth bottle freeze‑drying? Contact us today for a customized quote and a free product manual for this custom T-rack wide-mouth bottle freeze dryer. We'll help you select the right configuration and provide full technical support — no fluff, just practical advice.
