Geliss T-Rack C‑Shaped Bottle Freeze Dryer

Product Introduction

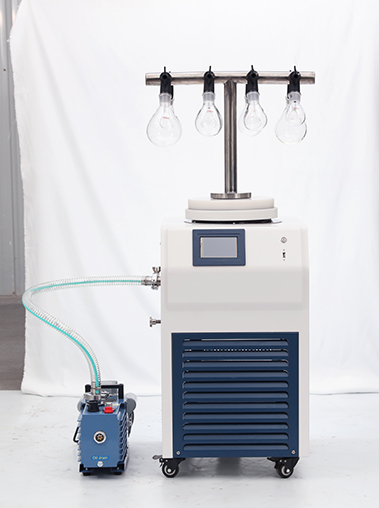

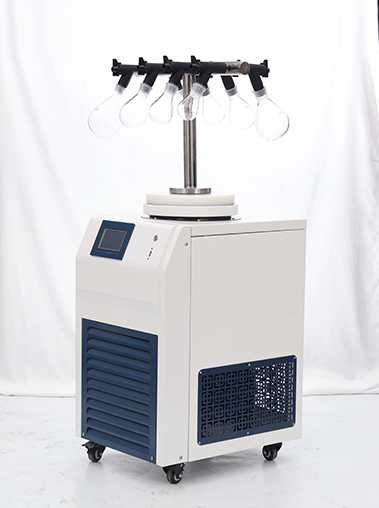

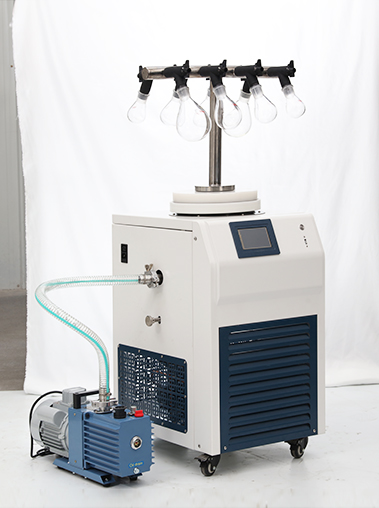

The ZLGJ-18 is a high-capacity laboratory freeze-dryer featuring a custom vertical T-shaped rack designed to perfectly match the curvature of eggplant-shaped flasks, ensuring stable, upright placement. This unit accommodates two flasks each of 100ml, 150ml, 250ml, and 500ml capacities. It offers a cold trap temperature as low as -60°C (with an optional -80°C version available) and a single-batch ice-holding capacity of 6 kg, making it ideal for meeting the high-capacity freeze-drying needs of university laboratories, pharmaceutical R&D centers, biological research institutes, and quality control facilities.

Core Advantages



Technical Specifications

---

MODEL	ZLGJ-10	ZLGJ-10MM	ZLGJ-10JPR	ZLGJ-10FTR	ZLGJ-12	ZLGJ-12MM	ZLGJ-12JPR	ZLGJ-12FTR	ZLGJ-18	ZLGJ-18MM	ZLGJ-18JPR	ZLGJ-18FTR
Model / Configuration	Ordinary Type	Multi‑manifold Type	Wide‑mouth Bottle T‑type Holder	Eggplant Bottle T‑type Holder	Ordinary Type	Multi‑manifold Type	Wide‑mouth Bottle T‑type Holder	Eggplant Bottle T‑type Holder	Ordinary Type	Multi‑manifold Type	Wide‑mouth Bottle T‑type Holder	Eggplant Bottle T‑type Holder
Freeze Dried Area	0.1 m²	0.1 m²	N/A (bottle volume)	N/A (bottle volume)	0.12 m²	0.12 m²	N/A (bottle volume)	N/A (bottle volume)	0.18 m²	0.18 m²	N/A (bottle volume)	N/A (bottle volume)
Cold Trap Temperature	-55℃ (optional -80℃)	-55℃ (optional -80℃)	-55℃ (optional -80℃)	-55℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)
Water Capture Capacity (kg/batch)	4 kg	4 kg	4 kg	4 kg	4 kg	4 kg	4 kg	4 kg	6 kg	6 kg	6 kg	6 kg
Standard Vacuum Degree (no‑load)	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa
Ultimate Vacuum	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa
Pumping Speed	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s
Material Tray Specification	Φ180 mm × 4 layers, spacing 70 mm	Φ180 mm × 4 layers, spacing 70 mm	Tray drying (similar)	Tray drying (similar)	Φ200 mm × 4 layers, spacing 70 mm	Φ200 mm × 4 layers, spacing 70 mm	Tray drying (similar)	Tray drying (similar)	Φ240 mm × 4 layers, spacing 70 mm	Φ240 mm × 4 layers, spacing 70 mm	Tray drying (similar)	Tray drying (similar)
Vial / Flask Loading Capacity	Vials: Φ12mm: 700 pcs; Φ16mm: 400 pcs; Φ22mm: 210 pcs	Vials: Φ12mm: 700; Φ16mm: 400; Φ22mm: 210 Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Vials: Φ12mm: 849 pcs; Φ16mm: 470 pcs; Φ22mm: 252 pcs	Vials: Φ12mm: 849; Φ16mm: 470; Φ22mm: 252 Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Vials: Φ12mm: 1270 pcs; Φ16mm:716 pcs; Φ22mm: 379 pcs	Vials: Φ12mm: 1270 pcs; Φ16mm:716 pcs; Φ22mm: 379 pcs Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2
Total Power (including vacuum pump)	950 W	950 W	950 W	950 W	950 W	950 W	950 W	950 W	1100 W	1100 W	1100 W	1100 W
Machine Dimensions (W×D×H)	520×600 ×400 mm	520×600   ×400 mm	520×600 ×400 mm	520×600 ×400 mm	480×600 ×770 mm	480×600 ×770 mm	480×600 ×770 mm	480×600 ×770 mm	560×560 ×980 mm	560×560 ×980 mm	560×560 ×980 mm	560×560 ×980 mm
Net Weight (machine only)	48 kg	48 kg	48 kg	48 kg	63 kg	63 kg	63 kg	63 kg	88 kg	88 kg	88 kg	88 kg
Power Supply	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz
Warranty Period	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)

 Core Advantages

---

This equipment is commonly used in universities and research laboratories for the freeze-drying and preservation of samples—such as microbial strains, biological extracts, and colloids—contained in eggplant-shaped flasks. In the pharmaceutical R&D sector, it is utilized for small-scale freeze-drying trials of probiotics and new drug samples. It also finds extensive application in biological research institutions, as well as in R&D, testing, and quality control centers for food and health products.

 Frequently Asked Questions

Q: Which C-type vial sizes are compatible with this T-rack freeze dryer?
A: It supports 100ml, 150ml, 250ml, and 500ml sizes; each batch can simultaneously process two vials of each of two different sizes.
Q: Is a separate pre-freezing freezer required?

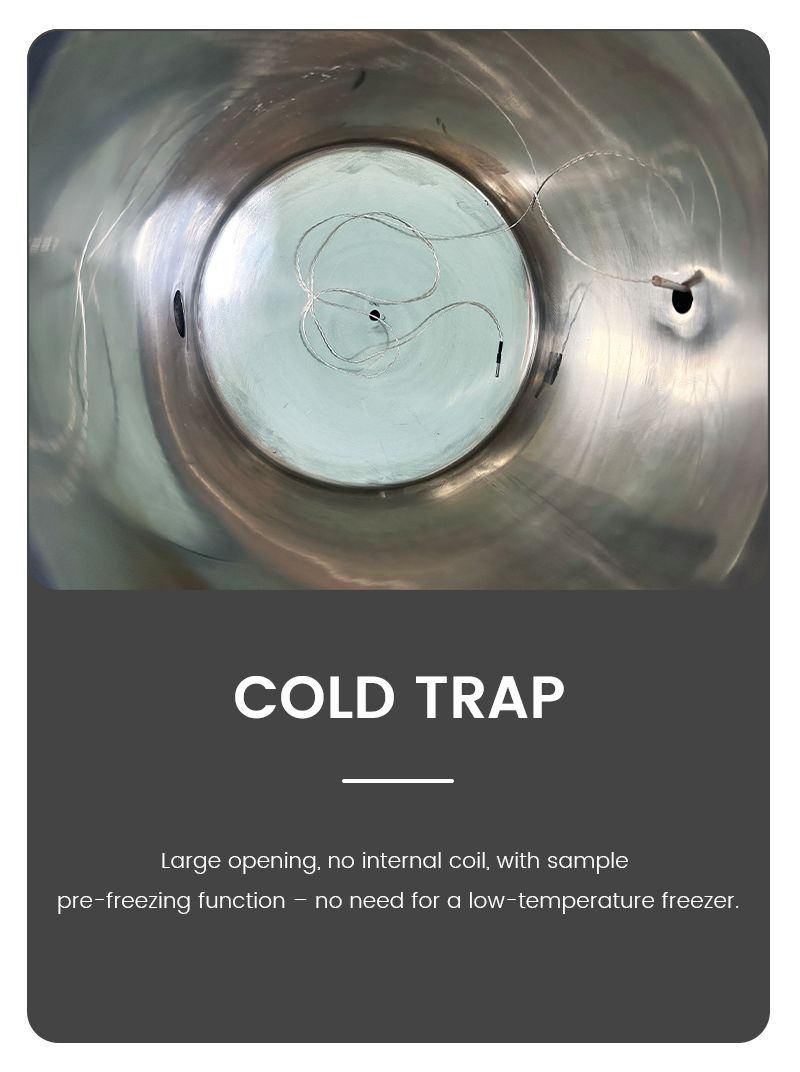

A: No, this upright laboratory freeze dryer features a built-in, independent pre-freezing function, allowing loading, pre-freezing, and the subsequent drying process to be completed within the same chamber.
Q: What are the advantages of the KF25 clamp?
A: It allows for quick connection and disconnection without tools and offers excellent vacuum sealing performance. Using the KF25 quick-connect interface saves installation time while ensuring a stable vacuum level.
Q: Is the T-rack easy to clean?
A: Yes, the rack is detachable and can be cleaned with water or sterilized via autoclave.
Q: Is it noisy when used in a quiet laboratory environment?
A: No, the noise level is ≤55dB—quieter than most laboratory refrigerators.

Call to Action

---

Contact us today to receive a customized selection plan, detailed quote, and operation manual for the ZLGJ-18 T-rack freeze dryer designed for eggplant-shaped flasks. Choose this stable and reliable system to meet your laboratory's freeze-drying needs and unlock a more efficient, safer solution for sample processing!
