Geliss In-Situ Pressure Cap Lab Freeze Dryer

ZLGJ-12ST

Product Details
Place Of Origin: China
Brand Name: Geliss
Certification: CE
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Available Upon Request
Packaging Details: Plywood Case
Delivery Time: 7-30 Working Days
Payment Terms: T/T
Supply Ability: 300 Units/Month

Quantity:

Contact Now

Recommend Products

Geliss Standard Benchtop Lab Freeze Dryer

Brand Name: Geliss Certification: CE Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/Month

ZLGJ-10
Geliss Standard Multi-manifold Laboratory Vacuum Freeze Dryer

Product Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/Month

ZLGJ-10MM
Geliss Benchtop Wide-Mouth Bottle Freeze Dryer

Product Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/Month

ZLGJ-10JPR
Geliss Table Top Egg-Shaped Flask Freeze Dryer

Product Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/Month

ZLGJ-10FTR

Product Introduction

The ZLGJ-12ST stoppering-type laboratory freeze-dryer integrates in-situ vial stoppering capabilities with freeze-drying functions for experimental materials such as small-dose biological agents or innovative drugs. Featuring stable performance and ease of operation, it is an ideal in-situ stoppering freeze-dryer for universities, pharmaceutical R&D laboratories, biological research institutions, and quality control centers.

Core Advantages

This integrated vacuum-sealed freeze dryer supports in-situ stoppering immediately after the freeze-drying process, eliminating the need for a secondary sealing step; this not only effectively prevents moisture absorption and contamination but also extends the shelf life of the freeze-dried product. Equipped with a high-precision fine-tuning vacuum valve and a vacuum alarm function, the unit enables precise vacuum control, achieving a standard vacuum level of ≤5 Pa (no-load) and an ultimate vacuum of 0.1 Pa. Its proprietary airflow technology ensures temperature uniformity within the cold trap and delivers superior water-trapping performance, creating a stable environment for the sample drying and sublimation processes.

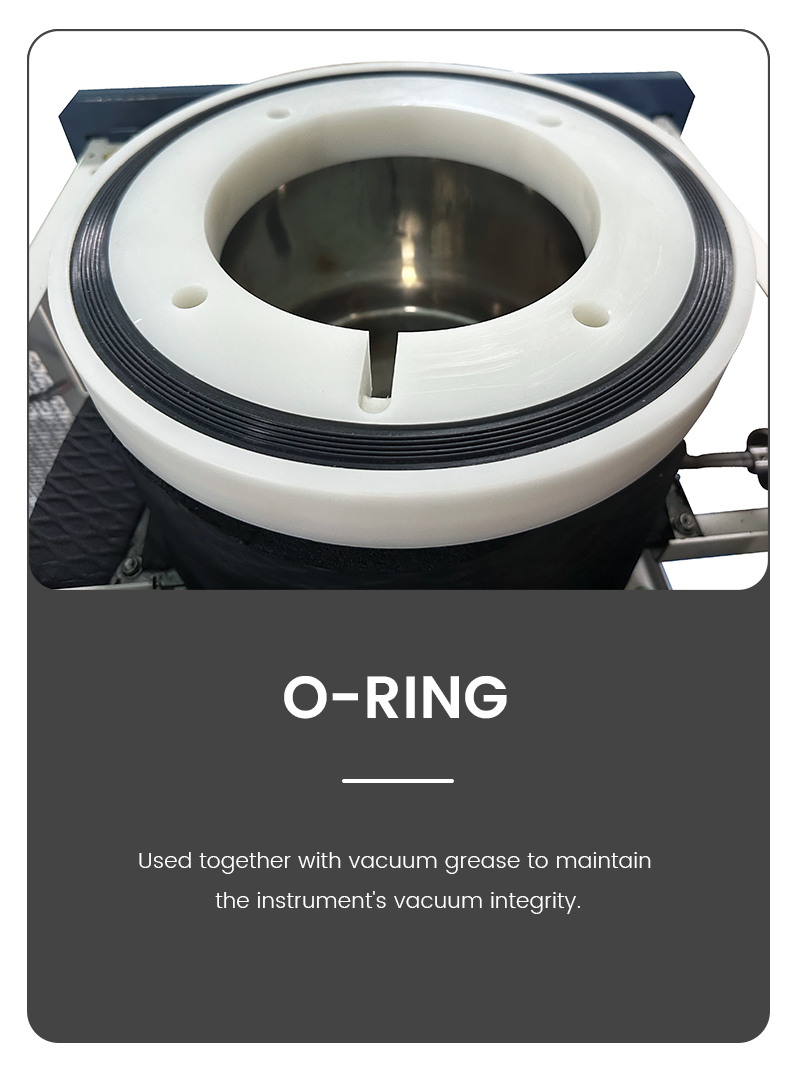

Infographic of a laboratory freeze dryer O-ring seal, showcasing the black rubber gasket design used with vacuum grease to maintain complete vacuum integrity.

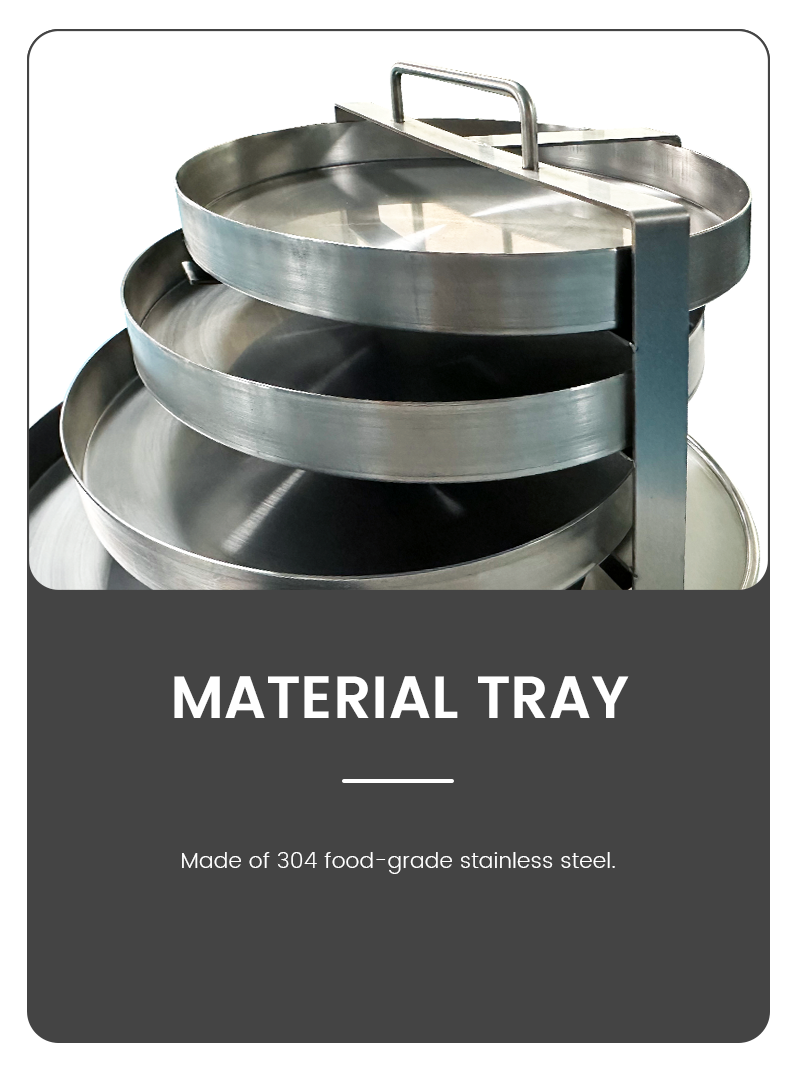

Infographic highlighting a vacuum freeze dryer material tray rack made of 304 food-grade stainless steel with a multi-layer stacked design and handle.

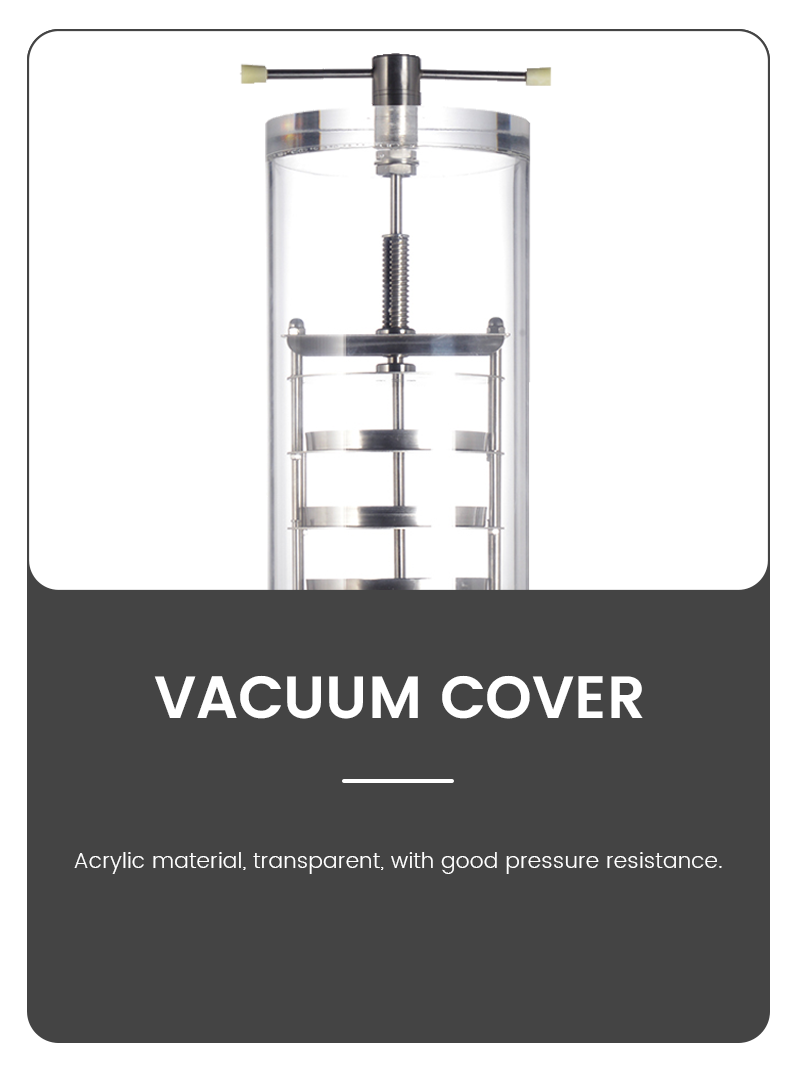

Infographic of a lyophilizer vacuum cover made of transparent acrylic material, featuring high pressure resistance for clear viewing of the drying chamber.

Technical Specifications

MODEL	ZLGJ-10ST	ZLGJ-10MM-ST	ZLGJ-12ST	ZLGJ-12MM-ST	ZLGJ-18ST	ZLGJ-18MM-ST
Model / Configuration	Ordinary Type	Multi‑manifold Type	Ordinary Type	Multi‑manifold Type	Ordinary Type	Multi‑manifold Type
Freeze Dried Area	0.08 m²		0.08 m²		0.09 m²
Cold Trap Temperature	-55℃ (optional -80℃)		-60℃ (optional -80℃)		-60℃ (optional -80℃)
Water Capture Capacity (kg/batch)	4 kg		4 kg		6 kg
Standard Vacuum Degree (no‑load)	≤5 Pa		≤5 Pa		≤5 Pa
Ultimate Vacuum	0.1 Pa		0.1 Pa		0.1 Pa
Pumping Speed	2 L/s		2 L/s		2 L/s
Material Tray Specification	Φ180 mm × 3 layers, spacing 100 mm		Φ180 mm × 3 layers, spacing 100 mm		Φ200 mm × 3 layers, spacing 100 mm
Vial / Flask Loading Capacity	Vials: Φ12mm: 560 pcs; Φ16mm:318 pcs; Φ22mm: 165 pcs	Vials: Φ12mm: 560 pcs; Φ16mm:318 pcs; Φ22mm:165 pcsEggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Vials: Φ12mm: 560 pcs; Φ16mm:318 pcs; Φ22mm: 165 pcs	Vials: Φ12mm: 560 pcs; Φ16mm:318 pcs; Φ22mm:165 pcsEggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Vials: Φ12mm: 630 pcs; Φ16mm:358 pcs; Φ22mm: 180 pcs	Vials: Φ12mm: 630 pcs; Φ16mm:358 pcs; Φ22mm:180 pcsEggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2
Total Power (including vacuum pump)	950 W		950 W		1100 W
Machine Dimensions (W×D×H)	520×600×400 mm		480×600×770 mm		560×560×980 mm
Net Weight (machine only)	48 kg		63kg		63kg
Power Supply	AC220V 50Hz / 110V 60Hz
Warranty Period	1 year (whole machine)

After-Sales Guarantee

This equipment comes with a one-year comprehensive warranty and lifetime technical support. It complies with international laboratory safety standards and supports AC 220V/50Hz or 110V/60Hz power supplies, making it compatible with laboratory electrical environments worldwide. With a net weight of 63 kg and package dimensions of 620×850×920 mm, the unit is convenient to transport. Additionally, we provide detailed operation manuals, validation documentation, and 24/7 multilingual online support to promptly resolve any issues encountered during experiments or equipment operation.

Frequently Asked Questions

Q: How does the in-situ stoppering function work?
A: After the freeze-drying cycle, simply turn the top operating handle to simultaneously press down on all vials and seal them within the chamber. There is no need to transfer the samples.
Q: What is the processing capacity of this laboratory freeze-dryer with stoppering capabilities?
A: It can process 560 (Φ12mm), 318 (Φ16mm), or 165 (Φ22mm) vials per batch.
Q: Is separate freezing equipment required for the pre-freezing process?
A: No. This benchtop stoppering freeze-dryer features a built-in, independent pre-freezing function; loading, pre-freezing, drying, and stoppering can all be performed within the same chamber.
Q: What are the advantages of the KF25 port?
A: It supports tool-free, quick connection and disconnection while offering excellent vacuum sealing performance. This not only saves installation time but also ensures consistent vacuum levels across batches.
Q: Is the machine noisy during operation?
A: No; the noise level is ≤55dB (quieter than most laboratory refrigerators), making it ideal for use in open laboratory environments.

Call to Action

Contact us today for a customized quote and a free product brochure for this laboratory-grade, stoppering-capable freeze dryer. We will help you select the optimal vial configuration and provide comprehensive technical support—delivering practical, actionable advice rather than empty talk.
📦 Bulk Purchasing & Institutional Inquiries: Special pricing available for universities, pharmaceutical R&D laboratories, and Quality Control (QC) centers.
