Geliss Ordinary Benchtop Freeze Dryer

Product Overview

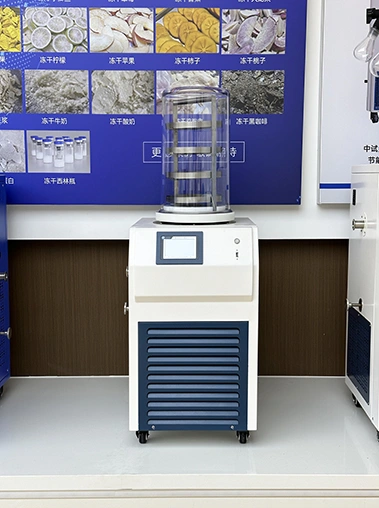

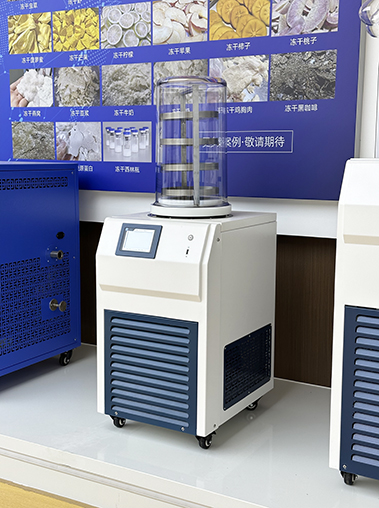

The ZLGJ-12 is a standard laboratory freeze dryer that utilizes ambient temperature to heat materials, thereby maximizing the preservation of the activity and nutritional integrity of heat-sensitive samples. It features a freeze-drying area of ​​0.12 m², a cold trap temperature of -60°C (with an optional -80°C setting), and a single-batch water-trapping capacity of 4 kg. Characterized by ease of operation, stable performance, and high versatility, it is an ideal general-purpose freeze dryer for universities, biological research institutes, food R&D laboratories, and quality control centers.



Technical Specifications

---



MODEL	ZLGJ-10	ZLGJ-10MM	ZLGJ-10JPR	ZLGJ-10FTR	ZLGJ-12	ZLGJ-12MM	ZLGJ-12JPR	ZLGJ-12FTR	ZLGJ-18	ZLGJ-18MM	ZLGJ-18JPR	ZLGJ-18FTR
Model / Configuration	Ordinary Type	Multi‑manifold Type	Wide‑mouth Bottle T‑type Holder	Eggplant Bottle T‑type Holder	Ordinary Type	Multi‑manifold Type	Wide‑mouth Bottle T‑type Holder	Eggplant Bottle T‑type Holder	Ordinary Type	Multi‑manifold Type	Wide‑mouth Bottle T‑type Holder	Eggplant Bottle T‑type Holder
Freeze Dried Area	0.1 m²	0.1 m²	N/A (bottle volume)	N/A (bottle volume)	0.12 m²	0.12 m²	N/A (bottle volume)	N/A (bottle volume)	0.18 m²	0.18 m²	N/A (bottle volume)	N/A (bottle volume)
Cold Trap Temperature	-55℃ (optional -80℃)	-55℃ (optional -80℃)	-55℃ (optional -80℃)	-55℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)
Water Capture Capacity (kg/batch)	4 kg	4 kg	4 kg	4 kg	4 kg	4 kg	4 kg	4 kg	6 kg	6 kg	6 kg	6 kg
Standard Vacuum Degree (no‑load)	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa
Ultimate Vacuum	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa
Pumping Speed	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s

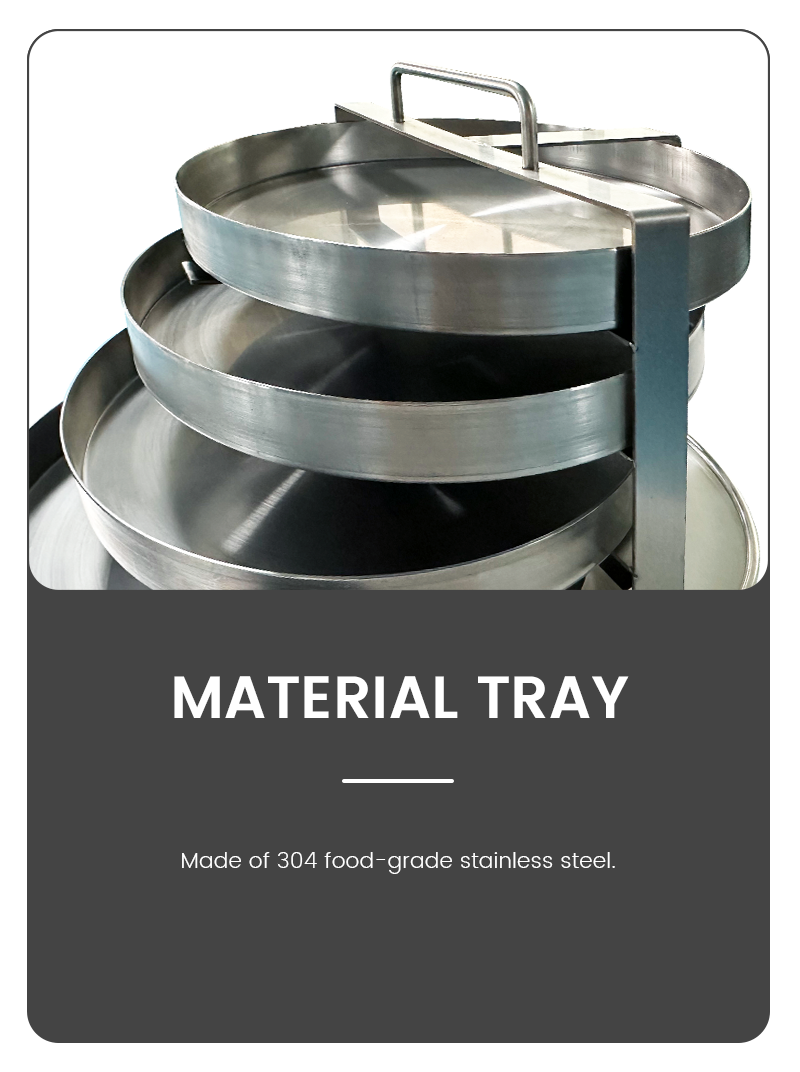

Material Tray Specification	Φ180 mm × 4 layers, spacing 70 mm	Φ180 mm × 4 layers, spacing 70 mm	Tray drying (similar)	Tray drying (similar)	Φ200 mm × 4 layers, spacing 70 mm	Φ200 mm × 4 layers, spacing 70 mm	Tray drying (similar)	Tray drying (similar)	Φ240 mm × 4 layers, spacing 70 mm	Φ240 mm × 4 layers, spacing 70 mm	Tray drying (similar)	Tray drying (similar)
Vial / Flask Loading Capacity	Vials: Φ12mm: 700 pcs; Φ16mm: 400 pcs; Φ22mm: 210 pcs	Vials: Φ12mm: 700; Φ16mm: 400; Φ22mm: 210 Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Vials: Φ12mm: 849 pcs; Φ16mm: 470 pcs; Φ22mm: 252 pcs	Vials: Φ12mm: 849; Φ16mm: 470; Φ22mm: 252 Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Vials: Φ12mm: 1270 pcs; Φ16mm:716 pcs; Φ22mm: 379 pcs	Vials: Φ12mm: 1270 pcs; Φ16mm:716 pcs; Φ22mm: 379 pcs Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2
Total Power (including vacuum pump)	950 W	950 W	950 W	950 W	950 W	950 W	950 W	950 W	1100 W	1100 W	1100 W	1100 W
Machine Dimensions (W×D×H)	520×600 ×400 mm	520×600   ×400 mm	520×600 ×400 mm	520×600 ×400 mm	480×600 ×770 mm	480×600 ×770 mm	480×600 ×770 mm	480×600 ×770 mm	560×560 ×980 mm	560×560 ×980 mm	560×560 ×980 mm	560×560 ×980 mm
Net Weight (machine only)	48 kg	48 kg	48 kg	48 kg	63 kg	63 kg	63 kg	63 kg	88 kg	88 kg	88 kg	88 kg
Power Supply	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz
Warranty Period	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)

Core Advantages

---

This freeze dryer features rapid cooling and uniform temperature distribution across the inner walls of the cold trap; utilizing specialized gas flow technology, it efficiently captures water vapor generated during the process to ensure thorough sample drying. It is equipped with a Secop compressor and employs single-stage mixed-refrigerant eco-friendly cooling technology, ensuring stable operation and low energy consumption.
With built-in independent sample pre-freezing in the cold trap and one-touch defrosting capabilities, it eliminates the need for separate ultra-low temperature freezers or liquid nitrogen, thereby simplifying workflows and reducing costs; it supports the freeze-drying of various sample formats, including ampoules, vials, and Petri dishes.



 Frequently Asked Questions

---

Q: How many vials can this unit accommodate?
A: This standard freeze dryer holds 849 vials (Φ12mm), 470 vials (Φ16mm), or 252 vials (Φ22mm) per batch.
Q: Is an external pre-freezing freezer required?
A: No, the cold trap features a built-in pre-freezing function, allowing sample loading, pre-freezing, and drying to be performed on a single unit.
Q: Can this standard freeze dryer process food samples?
A: Yes. It is widely used in R&D laboratories for processing samples such as fruits, dried meat, yogurt melts, and functional ingredients.
Q: How do I export data?
A: Simply insert a USB flash drive and navigate to the data management interface to export the data. All parameters are saved automatically.
Q: Does it support 110V power?
A: Yes. It is compatible with both 110V/60Hz and 220V/50Hz power supplies, making it ideal for use in laboratories worldwide.
