Geliss Standard Multi-manifold Laboratory Vacuum Freeze Dryer
ZLGJ-10MM
Product Details
Place Of Origin: China
Brand Name: Geliss
Certification: CE
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Available Upon Request
Packaging Details: Plywood Case
Delivery Time: 7-30 Working Days
Payment Terms: T/T
Supply Ability: 300 Units/Month
Place Of Origin: China
Brand Name: Geliss
Certification: CE
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Available Upon Request
Packaging Details: Plywood Case
Delivery Time: 7-30 Working Days
Payment Terms: T/T
Supply Ability: 300 Units/Month
Quantity:
Recommend Products
Geliss Standard Benchtop Lab Freeze DryerBrand Name: Geliss Certification: CE Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-10
Geliss Benchtop Wide-Mouth Bottle Freeze DryerProduct Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-10JPR
Geliss Table Top Egg-Shaped Flask Freeze DryerProduct Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-10FTR
Geliss Ordinary Benchtop Freeze DryerProduct Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/MonthZLGJ-12
Product Overview

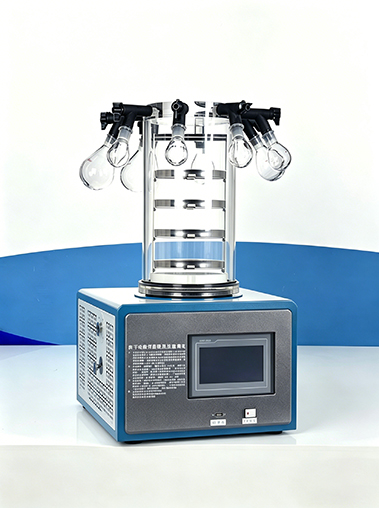

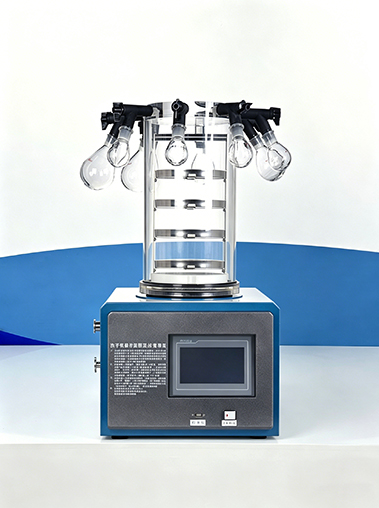

The ZLGJ-10 is a benchtop, multi-channel freeze-drying system designed for the efficient and precise processing of small-batch samples. Featuring a specialized parallel manifold configuration, it is compatible with various common laboratory containers—such as ampoules, vials, and eggplant-shaped flasks—and effectively meets the needs of universities, research institutes, and pharmaceutical R&D laboratories regarding sample preparation, process optimization, and strain preservation. It serves as a reliable and cost-effective solution for routine, parallel freeze-drying operations in the laboratory.
Core Advantages

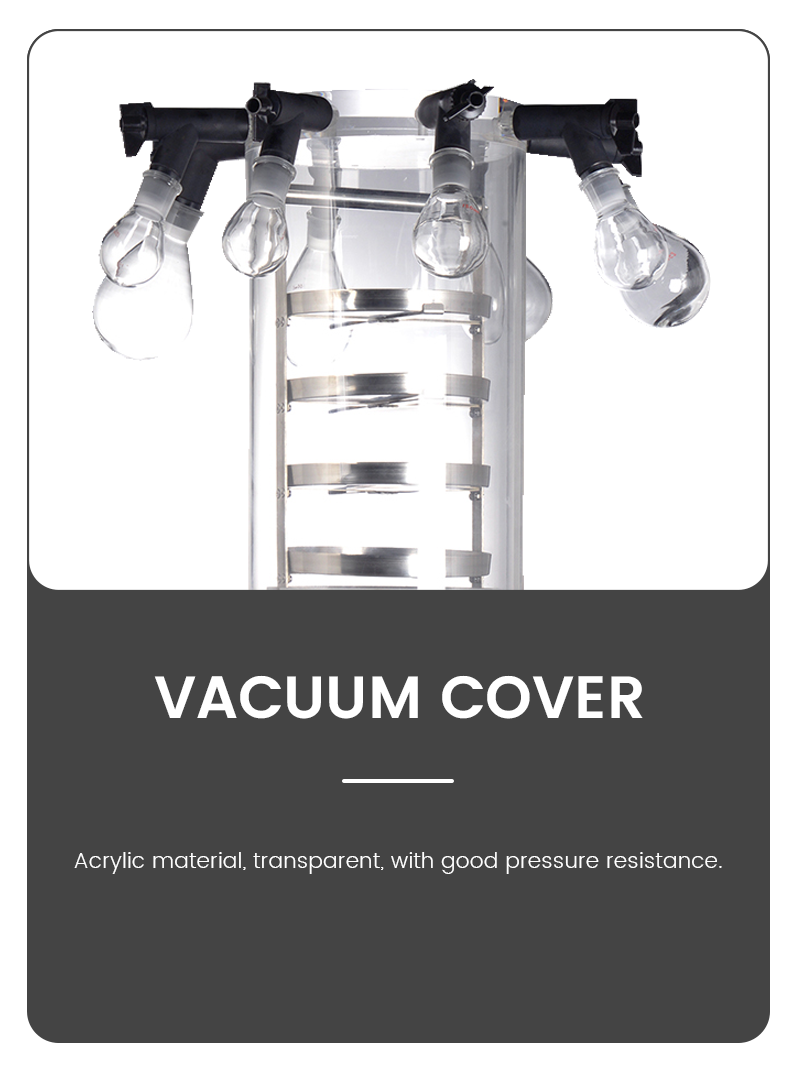

The multi-manifold parallel configuration enables the simultaneous freeze-drying of samples in various container types, allowing for the batch processing of samples with diverse characteristics; this significantly shortens experimental cycles and enhances laboratory sample processing efficiency. The system supports freeze-drying using common laboratory containers such as ampoules, vials, eggplant-shaped flasks, and plasma bottles. Its capacity accommodates 700 vials (Φ12mm), 400 vials (Φ16mm), or 210 vials (Φ22mm), while also supporting two each of eggplant-shaped flasks in 100ml, 150ml, 250ml, and 500ml sizes, thereby fully meeting the laboratory's diverse experimental needs.
Technical Specifications
| MODEL | ZLGJ-10 | ZLGJ-10MM | ZLGJ-10JPR | ZLGJ-10FTR | ZLGJ-12 | ZLGJ-12MM | ZLGJ-12JPR | ZLGJ-12FTR | ZLGJ-18 | ZLGJ-18MM | ZLGJ-18JPR | ZLGJ-18FTR |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model / Configuration | Ordinary Type | Multi‑manifold Type | Wide‑mouth Bottle T‑type Holder | Eggplant Bottle T‑type Holder | Ordinary Type | Multi‑manifold Type | Wide‑mouth Bottle T‑type Holder | Eggplant Bottle T‑type Holder | Ordinary Type | Multi‑manifold Type | Wide‑mouth Bottle T‑type Holder | Eggplant Bottle T‑type Holder |
| Freeze Dried Area | 0.1 m² | 0.1 m² | N/A (bottle volume) | N/A (bottle volume) | 0.12 m² | 0.12 m² | N/A (bottle volume) | N/A (bottle volume) | 0.18 m² | 0.18 m² | N/A (bottle volume) | N/A (bottle volume) |
| Cold Trap Temperature | -55℃ (optional -80℃) | -55℃ (optional -80℃) | -55℃ (optional -80℃) | -55℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) | -60℃ (optional -80℃) |
| Water Capture Capacity (kg/batch) | 4 kg | 4 kg | 4 kg | 4 kg | 4 kg | 4 kg | 4 kg | 4 kg | 6 kg | 6 kg | 6 kg | 6 kg |
| Standard Vacuum Degree (no‑load) | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa | ≤5 Pa |
| Ultimate Vacuum | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa | 0.1 Pa |
| Pumping Speed | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s | 2 L/s |

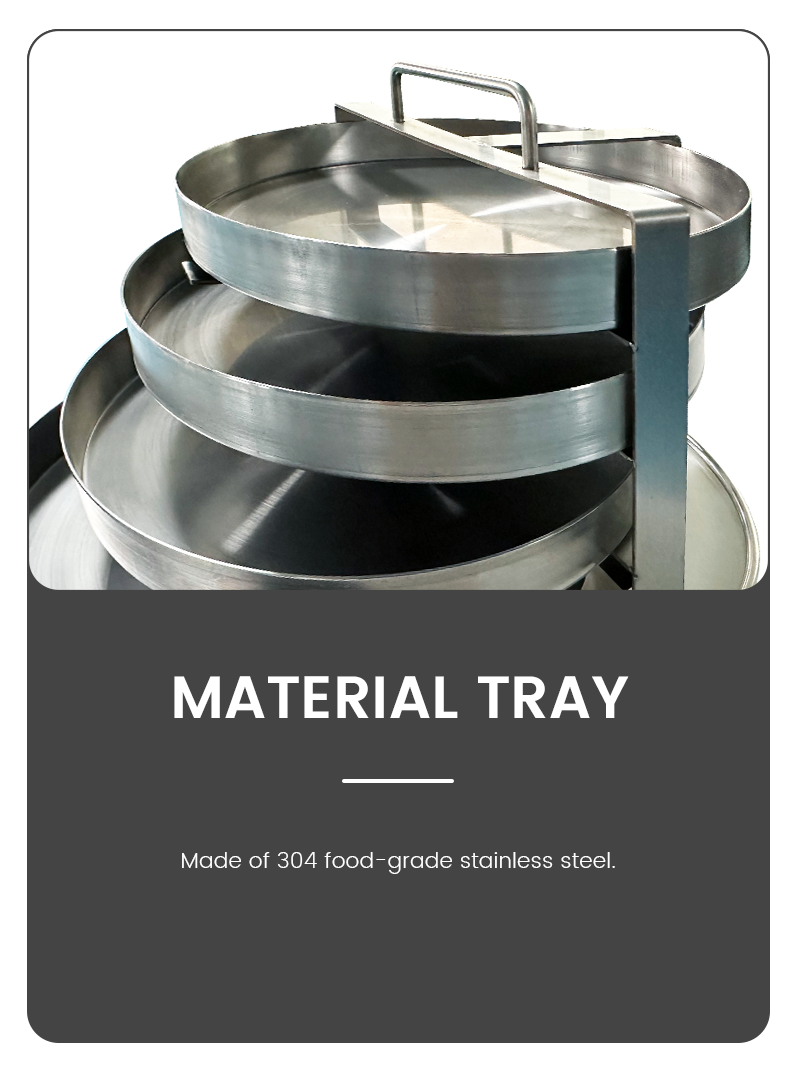

| Material Tray Specification | Φ180 mm × 4 layers, spacing 70 mm | Φ180 mm × 4 layers, spacing 70 mm | Tray drying (similar) | Tray drying (similar) | Φ200 mm × 4 layers, spacing 70 mm | Φ200 mm × 4 layers, spacing 70 mm | Tray drying (similar) | Tray drying (similar) | Φ240 mm × 4 layers, spacing 70 mm | Φ240 mm × 4 layers, spacing 70 mm | Tray drying (similar) | Tray drying (similar) |
| Vial / Flask Loading Capacity | Vials: Φ12mm: 700 pcs; Φ16mm: 400 pcs; Φ22mm: 210 pcs | Vials: Φ12mm: 700; Φ16mm: 400; Φ22mm: 210 Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Vials: Φ12mm: 849 pcs; Φ16mm: 470 pcs; Φ22mm: 252 pcs | Vials: Φ12mm: 849; Φ16mm: 470; Φ22mm: 252 Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Vials: Φ12mm: 1270 pcs; Φ16mm:716 pcs; Φ22mm: 379 pcs | Vials: Φ12mm: 1270 pcs; Φ16mm:716 pcs; Φ22mm: 379 pcs Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2 | Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2 |
| Total Power (including vacuum pump) | 950 W | 950 W | 950 W | 950 W | 950 W | 950 W | 950 W | 950 W | 1100 W | 1100 W | 1100 W | 1100 W |
| Machine Dimensions (W×D×H) | 520×600 ×400 mm | 520×600 ×400 mm | 520×600 ×400 mm | 520×600 ×400 mm | 480×600 ×770 mm | 480×600 ×770 mm | 480×600 ×770 mm | 480×600 ×770 mm | 560×560 ×980 mm | 560×560 ×980 mm | 560×560 ×980 mm | 560×560 ×980 mm |
| Net Weight (machine only) | 48 kg | 48 kg | 48 kg | 48 kg | 63 kg | 63 kg | 63 kg | 63 kg | 88 kg | 88 kg | 88 kg | 88 kg |
| Power Supply | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz | AC220V 50Hz / 110V 60Hz |
| Warranty Period | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) | 1 year (whole machine) |
After-Sales Guarantee
We provide a one-year comprehensive warranty and lifetime technical support. The ZLGJ-10 is designed and manufactured in strict accordance with relevant industry standards and comes with a complete test report and operation manual. The equipment supports AC 220V/50Hz or 110V/60Hz power supplies, making it compatible with laboratory power environments worldwide; our professional after-sales team offers 24/7 multilingual online technical support to promptly resolve any issues regarding experiments or equipment operation.
Frequently Asked Questions
Q: How many samples can this laboratory-grade freeze dryer process at once?
A: This benchtop freeze dryer can process up to 700 vials (Φ12mm) or 400 vials (Φ16mm) and supports the simultaneous use of multiple freeze-drying flasks. It is a parallel freeze-drying system with truly high processing capacity.
Q: Is the vacuum control precise?
A: The system is equipped with a high-precision fine-adjustment valve, allowing for stepless vacuum regulation. It achieves an ultimate vacuum of 0.1 Pa, ensuring sample safety.
Q: What types of containers can be used with this benchtop freeze dryer?
A: It supports ampoules, vials, eggplant-shaped flasks (100ml, 150ml, 250ml, 500ml), and plasma bottles, making it a highly versatile laboratory-grade freeze dryer.
Q: Is maintenance easy?
A: Yes. All four shelves are removable for cleaning. The system features built-in maintenance reminders and vacuum alarms, making daily operation simple and convenient.
A: This benchtop freeze dryer can process up to 700 vials (Φ12mm) or 400 vials (Φ16mm) and supports the simultaneous use of multiple freeze-drying flasks. It is a parallel freeze-drying system with truly high processing capacity.
Q: Is the vacuum control precise?
A: The system is equipped with a high-precision fine-adjustment valve, allowing for stepless vacuum regulation. It achieves an ultimate vacuum of 0.1 Pa, ensuring sample safety.
Q: What types of containers can be used with this benchtop freeze dryer?
A: It supports ampoules, vials, eggplant-shaped flasks (100ml, 150ml, 250ml, 500ml), and plasma bottles, making it a highly versatile laboratory-grade freeze dryer.
Q: Is maintenance easy?
A: Yes. All four shelves are removable for cleaning. The system features built-in maintenance reminders and vacuum alarms, making daily operation simple and convenient.
Call to Action
Order the ZLGJ-10 manifold-style laboratory freeze dryer now and receive a complimentary operation manual and experimental workflow guide. This unit is ideal for laboratories requiring a reliable benchtop freeze dryer for parallel sample processing.
