Geliss Industrial-Grade Stoppering Freeze Dryer for Pharmaceutical Use

ZLGJ-200FY

Product Details
Place Of Origin: China
Brand Name: Geliss
Certification: CE
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Available Upon Request
Packaging Details: Plywood Case
Delivery Time: 7-30 Working Days
Payment Terms: T/T
Supply Ability: 200 Units/Month

Quantity:

Contact Now

Recommend Products

Geliss Pilot Scale Freeze Dryer with Electric Heating for drug

Product Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 200 Units/Month

ZLGJ-10FD
Geliss Pilot Electric Heating Freeze Dryer for hash

Product Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 200 Units/Month

ZLGJ-30FD
Geliss Pilot Scale Freeze Dryer with Electric Heating for hash

Product Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 200 Units/Month

ZLGJ-50FD
Geliss Pilot-Scale Silicone Oil Heated Freeze Dryer for Biological Samples

Detalles del producto Lugar de origen: China Nombre de la marca: Geliss Certificación: CE Condiciones de pago y envío Cantidad mínima de pedido: 1 unidad Precio: Disponible bajo petición Detalles de empaquetado: Caja de madera contrachapada Tiempo de entrega: 7-30 días laborables Condiciones de pago: T/T Capacidad de suministro: 200 unidades/mes

ZLGJ-20F

ZLGJ-200FY Hydraulic Stoppering Silicone Oil Vacuum Freeze Dryer

The ZLGJ-200FY is a high-capacity freeze dryer featuring a hydraulic stoppering system, a drying area of 2.1 square meters, and a"4+1"shelf configuration; it is designed primarily for clients in the pharmaceutical, health supplement, and beauty industries. The unit utilizes rapid electric defrosting technology and a sterile carbon steel chamber design, and is equipped with an imported Grundfos canned motor pump and two original French Tecumseh fully hermetic compressors. It achieves a minimum cold trap temperature of ≤-75°C and a water-trapping capacity exceeding 30 kg, fully complying with GMP, FDA, and GB/T5226.1-1996 standards. Featuring an integrated structural design that facilitates maritime shipping and on-site installation abroad, it is an ideal choice for overseas pharmaceutical companies and high-end health supplement manufacturers requiring large-scale production capabilities.

Core Advantages

The system utilizes advanced rapid electric defrosting technology to quickly remove ice buildup from the condenser after the freeze-drying cycle, significantly reducing turnaround time between batches and enhancing production efficiency. It features a"4+1"shelf configuration (with an effective area of 2.1 m²) capable of accommodating 14,000 (2 ml), 8,000 (5 ml), or 4,100 (10 ml) vials per batch; this high-capacity design far exceeds that of comparable equipment, making it ideal for large-scale production and helping to lower unit production costs. With a maximum shelf spacing of 100 mm, the system flexibly accommodates various vial sizes (2 ml, 5 ml, 10 ml) and product trays. The interior surfaces of the carbon steel sterile chamber feature a roughness of Ra ≤0.6 μm, facilitating easy cleaning and sterilization while effectively preventing product residue and cross-contamination. The intelligent constant-temperature and constant-pressure control system supports both manual and automatic modes, offering features such as sensor calibration and freeze-drying endpoint alerts. The system ensures shelf temperature uniformity within ±1°C and achieves stable temperature transitions (heating and cooling) within 60 minutes under no-load conditions, thereby gently preserving the activity of heat-sensitive materials.

Display screen feature card for an industrial freeze dryer, highlighting the MCGS colorful large-screen LCD with user-friendly touch interaction.

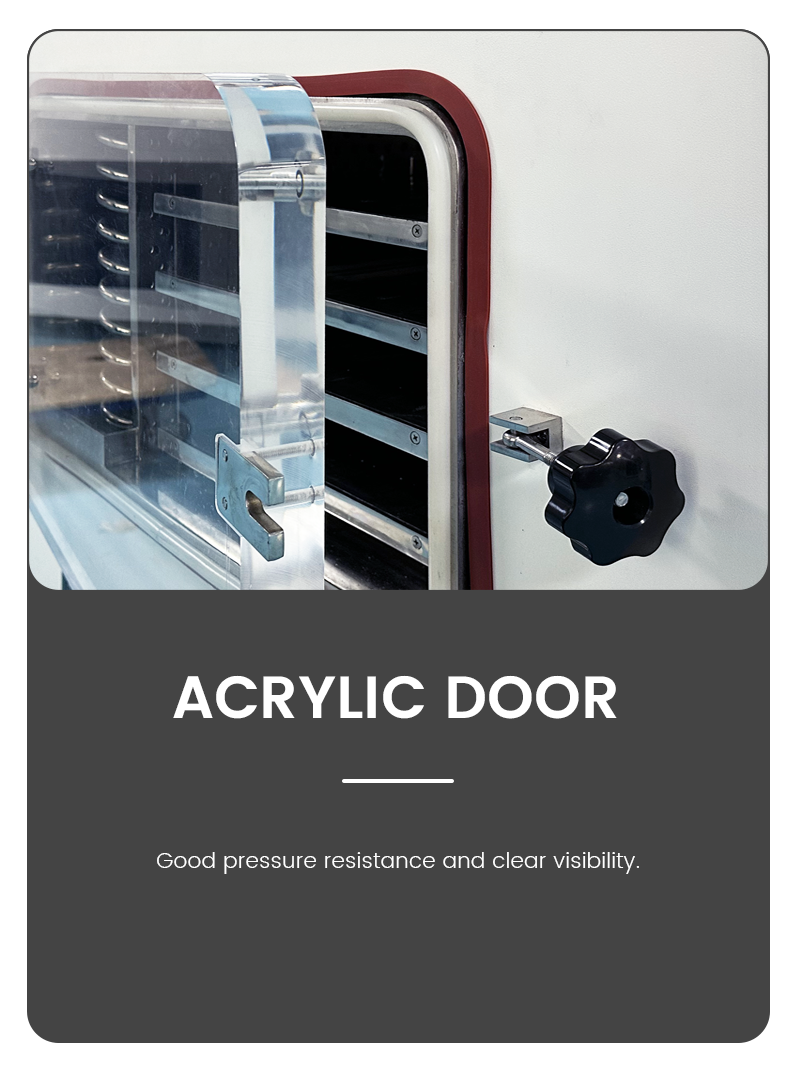

Detail of an acrylic chamber door on a vacuum lyophilizer, emphasizing its excellent pressure resistance and clear visibility for monitoring the freeze-drying process.

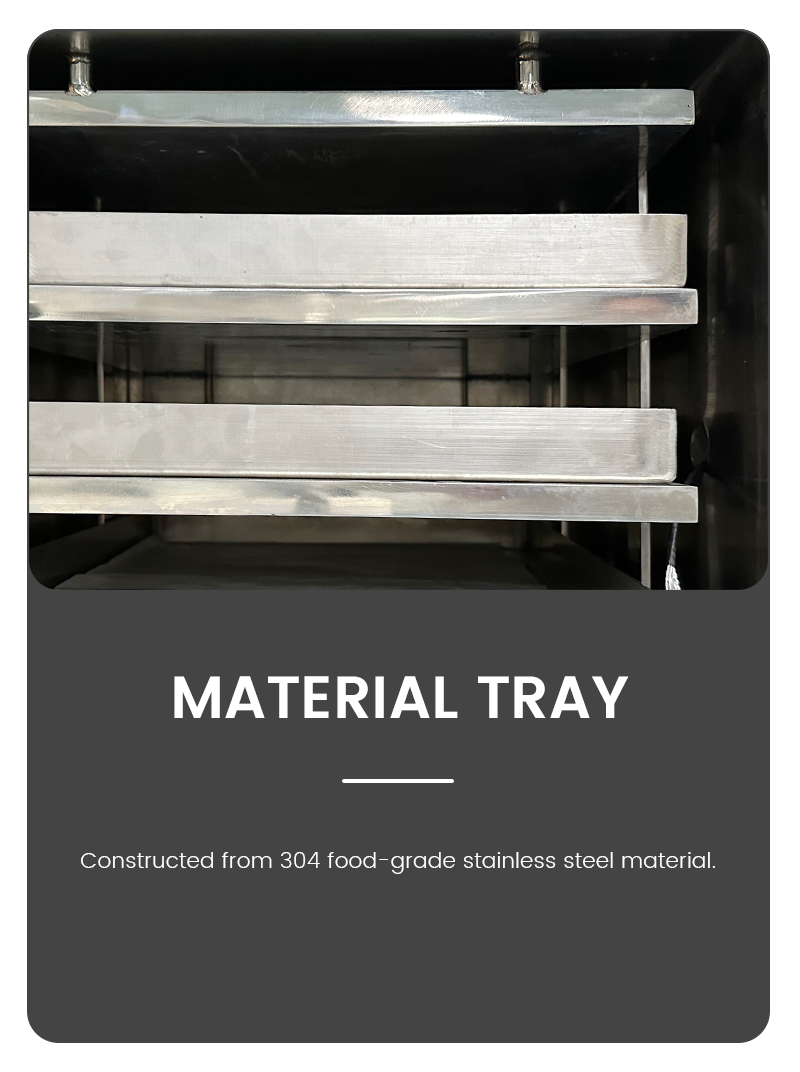

Material tray interior shot showing multiple layers of 304 food-grade stainless steel trays inside a professional vacuum freeze dryer chamber.

Technical Specifications

MODEL	ZLGJ-10FDY	ZLGJ-20FY	ZLGJ-30FY	ZLGJ-50FY	ZLGJ-100FY	ZLGJ-200FY
Freeze-dryingarea	0.1㎡	0.2㎡	0.3㎡	0.5㎡	1㎡	2.1㎡
Temperature scope of shelf	-50℃-+70℃(no-load)	-50℃-+70℃(no-load)	-50℃-+70℃(no-load)	-50℃-+70℃(no-load)	-50℃-+70℃(no-load)	-50℃-+70℃(no-load)
shelf temperatureerror	±1℃(in balance)	±1℃(in balance)	±1℃(in balance)	±1℃(in balance)	±1℃(in balance)	±1℃(in balance)
Min. Temperature of condenser	≤-60℃(no-load)	≤-75℃(no-load)	≤-75℃(no-load)	≤-75℃(no-load)	≤-75℃(no-load)	≤-75℃(no-load)
Water-capture capability	＞2Kg	＞4Kg	5Kg	＞8Kg	＞20Kg	＞30Kg
final Vacuum degree	≤ 10Pa	≤ 10Pa	≤ 10Pa	≤ 10Pa	≤ 10Pa	≤ 10Pa
Layers of shelf	1（Shelf spacing）100 mm	2（Shelf spacing）100 mm	3（Shelf spacing）100 mm	3（Shelf spacing）100 mm	4（Shelf spacing）100 mm	4（Shelf spacing）100 mm
Power	Single phase 220V	Single phase 220V or three-phase 380V	Single phase 220V or three-phase 380V	Single phase 220V or three-phase 380V	tSingle phase 220V or three-phase 380V	three-phase 380V
Installed power	1.5KW (this is installed power, not running power)	2.8 KW (this is installed power, not running power)	3.5 KW (this is installed power, not running power)	6.5 KW (this is installed power, not running power)	7.5 KW (this is installed power, not running power)	12.5 KW (this is installed power, not running power)
Whole machine size	About 780x650x1210mm	About 800x800x1650mm	About 950x1240x1450mm	About 980x1570x1970mm	About 1150x1580x1980mm	About 1150x1580x1980mm
Whole machine weight (kg)	About 220	About 323	About 320	About 800	About 1300	About 1300

Application Fields

The ZLGJ-200F is widely used in the pharmaceutical industry for the production of injectables, active pharmaceutical ingredients (APIs), antibodies, and diagnostic reagents—sectors that demand exceptional consistency in drying performance and strict adherence to aseptic processing standards. For manufacturers of nutritional supplements and health products, this freeze-dryer is an ideal choice for processing peptides, probiotics, and other bioactive ingredients. In the industrial production of biological products, food additives, and other heat-sensitive materials, the Geliss ZLGJ-200F effectively meets diverse production needs thanks to features such as automatic vial stoppering, generous shelf spacing, and broad applicability.
Furthermore, the ZLGJ-200F serves as a reliable platform for process development, scale-up studies, and pilot-scale production. Universities, contract research organizations (CROs), and pharmaceutical R&D centers can utilize this equipment to validate freeze-drying processes, thereby laying the groundwork for the subsequent transition to large-scale commercial production.

Front view of a professional industrial freeze dryer in a factory setting, featuring a high-visibility square chamber door and a sturdy blue cooling ventilation base.

Three-quarter view of an industrial lyophilizer machine on wheels, showcasing its digital control panel and a side observation window in a spacious workshop.

Three-quarter side angle of a large industrial vacuum freeze dryer, highlighting its robust stainless steel construction and efficient air circulation cooling system.

Frequently Asked Questions

Q: What are the advantages of electric defrosting/rapid de-icing technology in large-scale production?
A: Our electric defrosting technology enables a rapid, automated de-icing process that shortens batch turnaround times and eliminates the need for manual intervention, thereby significantly boosting production efficiency.

Q: What is the loading capacity of the equipment? Can it meet large-scale production demands?
A: The equipment features a"4+1"shelf configuration (with an effective area of 2.1 m²), allowing it to load 14,000 2mL vials per batch and offering a water-trapping capacity exceeding 30 kg. It can process large volumes of material in a single run, delivering throughput far superior to comparable equipment.

Q: What are the benefits of the adjustable shelf spacing design?
A: This design supports a maximum shelf spacing of 100 mm, allowing for flexible accommodation of various vial sizes and product trays; this enhances the equipment's versatility and meets the freeze-drying requirements of diverse materials.

Q: Is the carbon steel aseptic chamber suitable for pharmaceutical aseptic production?
A: The inner surface of the carbon steel aseptic chamber achieves a roughness of Ra ≤0.6 μm, facilitating easy cleaning and sterilization while effectively preventing cross-contamination, fully complying with the standards required for pharmaceutical aseptic production.

Call to Action

Contact us today for a customized solution and a detailed quote for the ZLGJ-200FY! You will also receive a complimentary technical manual and a GMP compliance validation package to help you efficiently launch large-scale freeze-drying production and achieve stable, high-efficiency, and compliant vacuum freeze-drying operations.
