Geliss Pilot Scale Freeze Dryer with Electric Heating for hash

ZLGJ-50FD
Product Details
Place Of Origin: China
Brand Name: Geliss
Certification: CE
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Available Upon Request
Packaging Details: Plywood Case
Delivery Time: 7-30 Working Days
Payment Terms: T/T
Supply Ability: 200 Units/Month
Quantity:
Contact Now
Recommend Products


Product Introduction

The ZLGJ-50FD is an electrically heated pilot-scale freeze dryer featuring a freeze-drying area of ​​0.6 square meters (distributed across six specialized shelves); it achieves a minimum cold trap temperature of ≤-60°C and has a water-trapping capacity exceeding 8 kg.

Core Advantages

The equipment features a freeze-drying chamber, shelves, and a condenser all constructed from AISI 304 stainless steel, utilizing a patented internal welding process. With an internal surface roughness of Ra ≤ 0.6 μm and shelf flatness exceeding ±0.5 mm/m, the design eliminates sanitary dead zones, facilitating easy cleaning and sterilization—making it an ideal choice for vial freeze-drying processes in the biopharmaceutical industry. The shelf temperature is adjustable between -40°C and +70°C (no-load), with steady-state temperature uniformity better than ±1°C; the condenser can cool from +20°C to -40°C within 30 minutes (reaching a minimum temperature below -60°C) and offers a water-trapping capacity exceeding 8 kg. The system employs a Mitsubishi PLC and a Kinco touchscreen interface, supporting both manual and automatic operation modes through an intuitive, user-friendly interface. It includes functions for sensor calibration and intelligent freeze-drying endpoint indication; all critical production parameters are recorded in real-time and can be exported via USB with a single click, easily meeting international production management requirements for process validation and compliance traceability.
Infographic card showcasing the MCGS digital liquid crystal display touch screen for a laboratory freeze dryer.
Product infographic featuring a heavy-duty transparent acrylic door with clear visibility for a vacuum freeze dryer.
Technical infographic illustrating layered 304 food-grade stainless steel material trays inside a lyophilizer.
With an integrated design (approx. 880×700×1470mm, 447kg), it’s compact, easy to transport and place, no complex assembly needed. The acrylic transparent door lets you monitor the entire freeze-drying process in real-time. The U-shaped coil condenser boasts strong ice-capturing capability and a compact structure, paired with natural defrosting for simple, efficient cleaning and maintenance—saving you plenty of labor costs.

Technical Specifications

MODEL
ZLGJ-10FDZLGJ-30FDZLGJ-50FD
Freeze-dryingarea0.2㎡0.4㎡0.6㎡
Temperature scope of shelf-40℃-+70℃(no-load)-40℃-+70℃(no-load)-40℃-+70℃(no-load)
shelf temperatureerror±1℃(in balance)±1℃(in balance)±1℃(in balance)
Min. Temperature of condenser

≤-60℃(no-load)

≤-60℃(no-load)≤-60℃(no-load)
Water-capture capability＞3Kg＞6Kg＞8Kg
final Vacuum degree≤ 10Pa≤ 10Pa≤ 10Pa
Layers of shelf2（Shelf spacing）70 mm4（Shelf spacing）50 mm6（Shelf spacing）50 mm
PowerSingle phase 220VSingle phase 220VSingle phase 220V
Installed power1.5KW (this is installed power, not running power)2.1KW (this is installed power, not running power)2.5KW (this is installed power, not running power)
Whole machine sizeAbout 780x650x1210mmAbout 800x700x1220mmAbout 880x700x1470mm
Whole machine weight (kg)About 200About 333About 447kg


Application Fields

This equipment is widely used in the biopharmaceutical sector (for the freeze-drying of vial-packaged products such as antibodies, vaccines, and diagnostic reagents—compatible with 12mm, 16mm, and 22mm vials, with minimum capacities of 4,246, 2,388, and 1,263 vials, respectively), the high-end food industry (small-batch production of freeze-dried fruits, vegetables, health supplements, and pet food), and the field of new materials (drying of nanomaterials, enzyme preparations, etc.). It is particularly well-suited for the freeze-drying of heat-sensitive, oxidation-prone, and high-value materials, and is also applicable to scientific research, industrial process optimization, and production process validation.

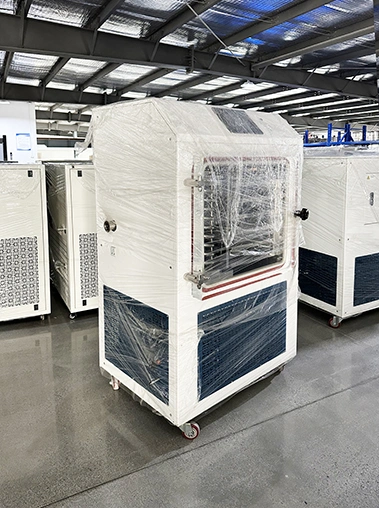

Left perspective view of a white pilot vacuum freeze dryer wrapped in protective plastic film inside a factory workshop.

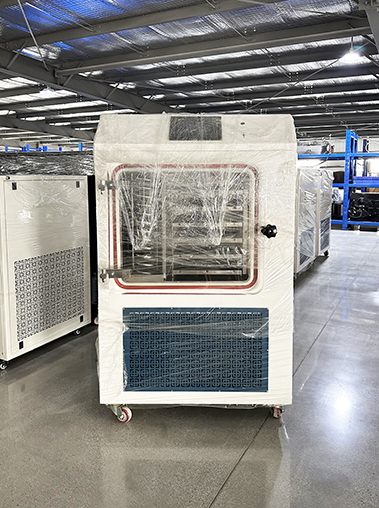

Front view of an industrial lyophilizer machine covered in clear protective wrap on a factory workshop floor.
Right perspective view of a laboratory freeze dryer wrapped in protective film inside a manufacturing facility.

Frequently Asked Questions

Q: What should be kept in mind for daily equipment maintenance?
A: Routine maintenance involves simply cleaning the shelves and cold trap, checking the vacuum pump oil level and vacuum pressure, keeping the unit ventilated and dry, preventing debris accumulation, and monitoring high-pressure or vacuum alarms. These steps ensure proper component operation and extend the equipment's service life.
Q: Which vial specifications are compatible with the equipment, and what are the loading capacities?
A: It accommodates three common vial sizes: 12mm (2ml), 16mm (5ml), and 22mm (10ml). The respective loading capacities are ≥4,246, ≥2,388, and ≥1,263 vials, fully meeting small-batch freeze-drying needs for vials in the biopharmaceutical sector.
Q: Is the equipment difficult to operate? Can beginners get up to speed quickly?
A: Operation is very simple! It features PLC touchscreen controls, supports both manual and automatic modes, and includes preset common freeze-drying processes that can be started with a single touch. We provide detailed operation manuals (in Chinese and English) and video training, allowing beginners to master the system quickly without prior professional experience.
Q: How should equipment malfunctions be handled?
A: The equipment features a real-time alarm function, allowing you to view alarm logs and quickly pinpoint the cause of a fault. You can also contact our after-sales team for 24/7 online support to resolve issues rapidly, minimize production losses, and ensure smooth operations.
