Geliss Multi Manifold Benchtop Freeze Dryer

ZLGJ-12MM

Product Details
Place Of Origin: China
Brand Name: Geliss
Certification: CE
Payment & Shipping Terms
Minimum Order Quantity: 1 Unit
Price: Available Upon Request
Packaging Details: Plywood Case
Delivery Time: 7-30 Working Days
Payment Terms: T/T
Supply Ability: 300 Units/Month

Quantity:

Contact Now

Recommend Products

Geliss Standard Benchtop Lab Freeze Dryer

Brand Name: Geliss Certification: CE Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/Month

ZLGJ-10
Geliss Standard Multi-manifold Laboratory Vacuum Freeze Dryer

Product Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/Month

ZLGJ-10MM
Geliss Benchtop Wide-Mouth Bottle Freeze Dryer

Product Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/Month

ZLGJ-10JPR
Geliss Table Top Egg-Shaped Flask Freeze Dryer

Product Details Place Of Origin: China Brand Name: Geliss Certification: CE Payment & Shipping Terms Minimum Order Quantity: 1 Unit Price: Available Upon Request Packaging Details: Plywood Case Delivery Time: 7-30 Working Days Payment Terms: T/T Supply Ability: 300 Units/Month

ZLGJ-10FTR

Product Overview

The ZLGJ-12 is a manifold-type freeze dryer designed for the batch freeze-drying of samples in laboratories, research institutes, and pharmaceutical R&D centers. Featuring an efficient manifold design, the unit enables the simultaneous freeze-drying of multiple samples, thereby significantly enhancing experimental efficiency.

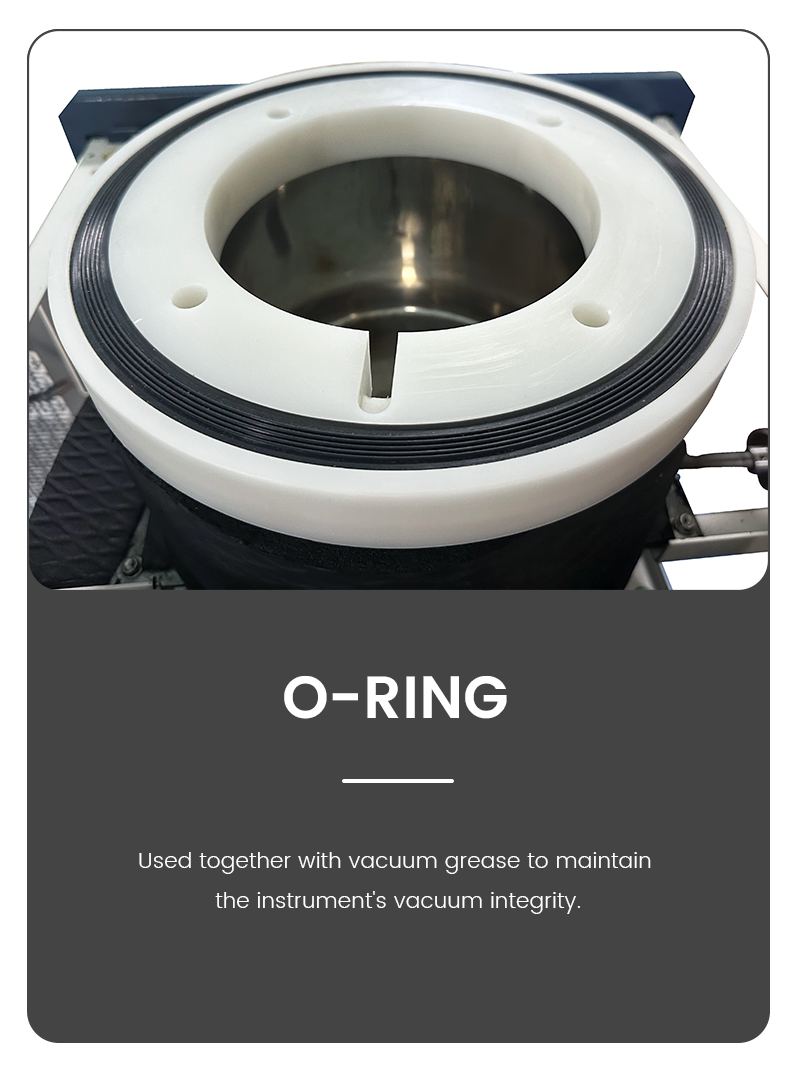

Infographic detail of a vacuum freeze dryer O-ring, showing the rubber sealing gasket used with vacuum grease to maintain strict pressure integrity inside the chamber.

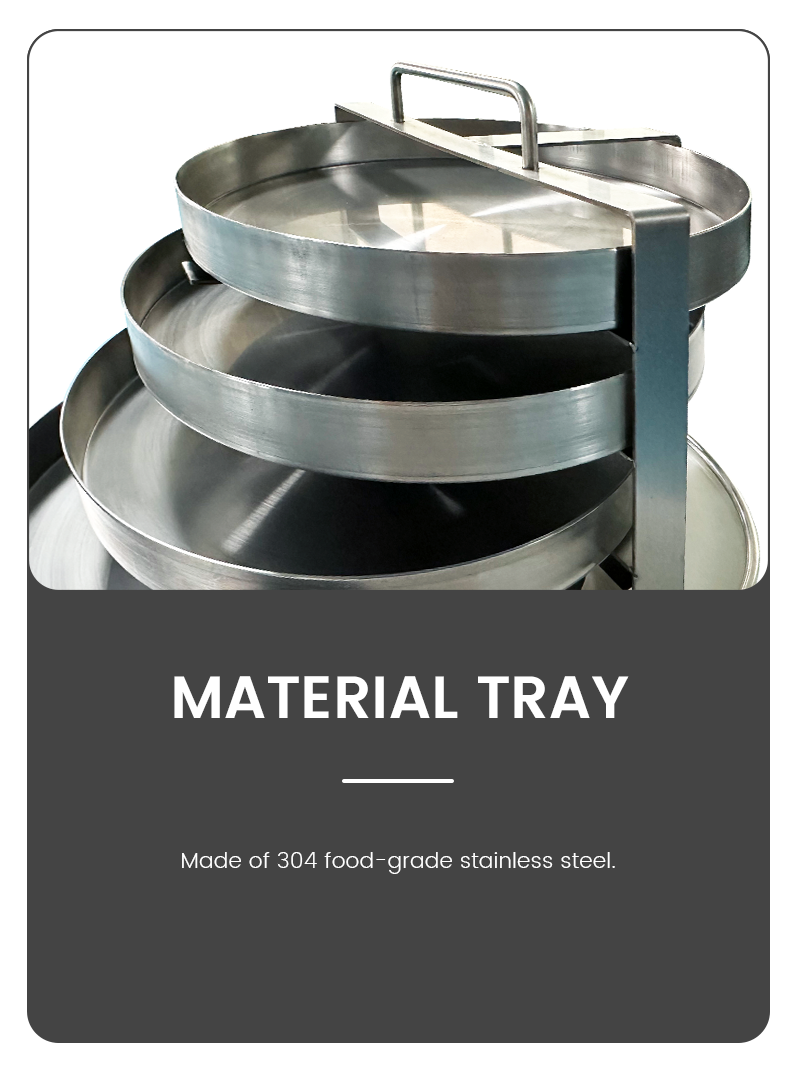

Infographic of laboratory lyophilizer material trays made of 304 food-grade stainless steel, featuring a multi-layered removable rack design for sample drying.

Infographic detail of Geliss transparent acrylic vacuum cover with a manifold configuration holding multiple eggplant-shaped glass flasks.

Technical Specifications

MODEL	ZLGJ-10	ZLGJ-10MM	ZLGJ-10JPR	ZLGJ-10FTR	ZLGJ-12	ZLGJ-12MM	ZLGJ-12JPR	ZLGJ-12FTR	ZLGJ-18	ZLGJ-18MM	ZLGJ-18JPR	ZLGJ-18FTR
Model / Configuration	Ordinary Type	Multi‑manifold Type	Wide‑mouth Bottle T‑type Holder	Eggplant Bottle T‑type Holder	Ordinary Type	Multi‑manifold Type	Wide‑mouth Bottle T‑type Holder	Eggplant Bottle T‑type Holder	Ordinary Type	Multi‑manifold Type	Wide‑mouth Bottle T‑type Holder	Eggplant Bottle T‑type Holder
Freeze Dried Area	0.1 m²	0.1 m²	N/A (bottle volume)	N/A (bottle volume)	0.12 m²	0.12 m²	N/A (bottle volume)	N/A (bottle volume)	0.18 m²	0.18 m²	N/A (bottle volume)	N/A (bottle volume)
Cold Trap Temperature	-55℃ (optional -80℃)	-55℃ (optional -80℃)	-55℃ (optional -80℃)	-55℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)	-60℃ (optional -80℃)
Water Capture Capacity (kg/batch)	4 kg	4 kg	4 kg	4 kg	4 kg	4 kg	4 kg	4 kg	6 kg	6 kg	6 kg	6 kg
Standard Vacuum Degree (no‑load)	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa	≤5 Pa
Ultimate Vacuum	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa	0.1 Pa
Pumping Speed	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s	2 L/s
Material Tray Specification	Φ180 mm × 4 layers, spacing 70 mm	Φ180 mm × 4 layers, spacing 70 mm	Tray drying (similar)	Tray drying (similar)	Φ200 mm × 4 layers, spacing 70 mm	Φ200 mm × 4 layers, spacing 70 mm	Tray drying (similar)	Tray drying (similar)	Φ240 mm × 4 layers, spacing 70 mm	Φ240 mm × 4 layers, spacing 70 mm	Tray drying (similar)	Tray drying (similar)
Vial / Flask Loading Capacity	Vials: Φ12mm: 700 pcs; Φ16mm: 400 pcs; Φ22mm: 210 pcs	Vials: Φ12mm: 700; Φ16mm: 400; Φ22mm: 210 Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Vials: Φ12mm: 849 pcs; Φ16mm: 470 pcs; Φ22mm: 252 pcs	Vials: Φ12mm: 849; Φ16mm: 470; Φ22mm: 252 Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Vials: Φ12mm: 1270 pcs; Φ16mm:716 pcs; Φ22mm: 379 pcs	Vials: Φ12mm: 1270 pcs; Φ16mm:716 pcs; Φ22mm: 379 pcs Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Wide‑mouth bottles: 100mL×2, 150mL×2, 250mL×2, 500mL×2	Eggplant flasks: 100mL×2, 150mL×2, 250mL×2, 500mL×2
Total Power (including vacuum pump)	950 W	950 W	950 W	950 W	950 W	950 W	950 W	950 W	1100 W	1100 W	1100 W	1100 W
Machine Dimensions (W×D×H)	520×600 ×400 mm	520×600 ×400 mm	520×600 ×400 mm	520×600 ×400 mm	480×600 ×770 mm	480×600 ×770 mm	480×600 ×770 mm	480×600 ×770 mm	560×560 ×980 mm	560×560 ×980 mm	560×560 ×980 mm	560×560 ×980 mm
Net Weight (machine only)	48 kg	48 kg	48 kg	48 kg	63 kg	63 kg	63 kg	63 kg	88 kg	88 kg	88 kg	88 kg
Power Supply	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz	AC220V 50Hz / 110V 60Hz
Warranty Period	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)	1 year (whole machine)

Core Advantages

This multi-manifold parallel freeze dryer enables the simultaneous processing of multiple samples, eliminating the tedium of handling samples one by one. Equipped with four 200mm material trays spaced 70mm apart, it accommodates 849 vials (Φ12mm), 470 vials (Φ16mm), or 252 vials (Φ22mm), significantly saving experimental time.
It also supports freeze-drying in various containers—including vials of different specifications, eggplant-shaped flasks (100ml/150ml/250ml/500ml), ampoules, and glass flasks—thereby meeting diverse experimental requirements and suiting a wide range of laboratory settings.

Frequently Asked Questions

Q: How many vials can this parallel freeze-dryer accommodate at once?
A: Each batch can hold 849 (Φ12mm), 470 (Φ16mm), or 252 (Φ22mm) vials, fully meeting the needs of high-frequency experiments.
Q: Does it support the use of eggplant-shaped flasks?
A: Yes, this manifold freeze-dryer can simultaneously accommodate two flasks each of the 100ml, 150ml, 250ml, and 500ml sizes.
Q: Do I need a separate pre-freezing freezer?
A: No. The cold trap features a built-in pre-freezing function, integrating loading, pre-freezing, and drying into a single unit.
Q: Can freeze-drying data be exported?
A: Yes. This manifold laboratory freeze-dryer automatically records all parameters, and you can export the data via a USB port for archiving.
Q: Is maintenance easy?
A: Very easy. The unit includes a maintenance reminder function that alerts you when servicing is required; the manifold ports are also detachable for easy cleaning.

Call to Action

Looking to boost your batch freeze-drying efficiency? Contact us today for a customized quote and a free product brochure for this multi-manifold freeze dryer. We will help you select the ideal manifold configuration and provide comprehensive technical support—delivering practical, actionable advice rather than empty talk.
